MTB Shock MOD for Janobike T85, Boyueda …

This is super simple Mod, you just need 4 printed parts and one extra seal. If You don’t have printer then ask some one for help, those parts are easy and cheap to make , if U still can’t get those parts buy a Printer cost like 200$ ( My FAV Creality Prusa bit.ly/CrealityP )and U can help others & make some extra $ thanks to it. to print BiG spacers use PLA and 80-90% infill , for extra seal use flexible filament ( rubber like ). Here you can download all files www.thingiverse.com/thing:4298481

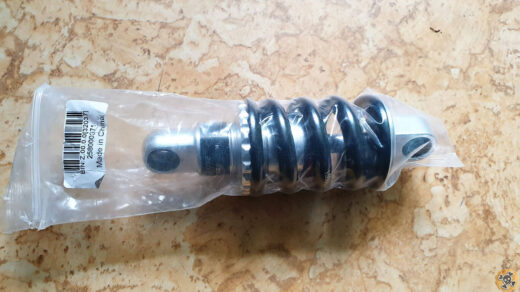

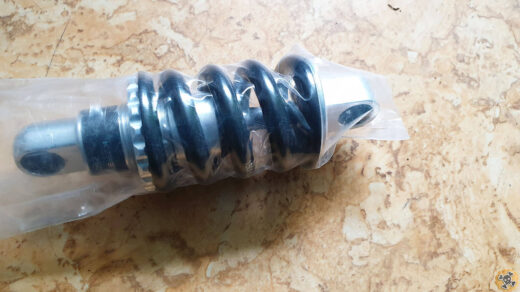

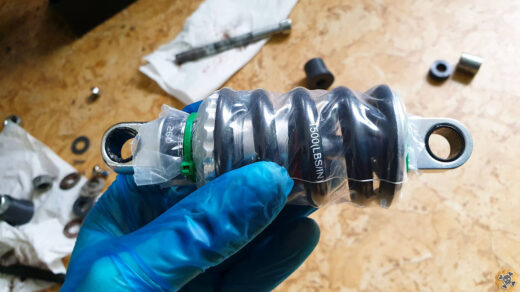

Also you need 125mm lenght MTB shock with inner mount holes 12mm ( most of shock got thsi size ), you can buy cheap chinese shock on Ebay like this one www.ebay.com/itm/125mm-1200LBS-Rear-Suspension-Shock-Fits-Mini-Dirt-Pocket-Bike-ATV-Quad/153147734713 , or buy some HQ like KS 260 125mm 2000lbs ( I used it in my T85) or DNM 125mm 2000lbs . Also it’s possible that you will be able to use shocks filled with oil like DNM www.aliexpress.com/item/4000008178798.html

!! Important !! Do NOT open or modify OIL shock , inner lubrication and extra seal is only for cheap no oil shocks.

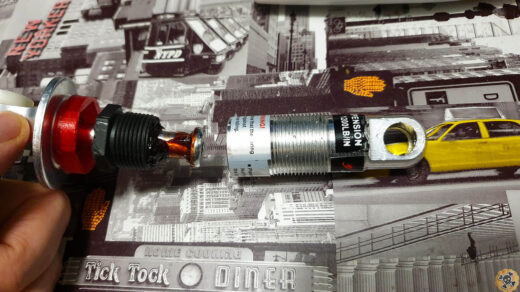

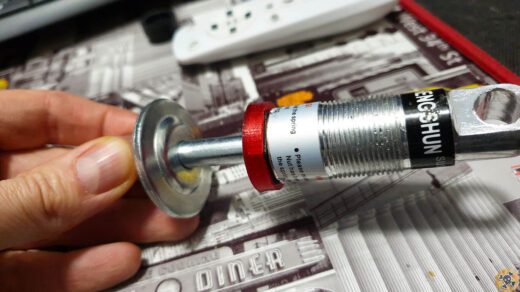

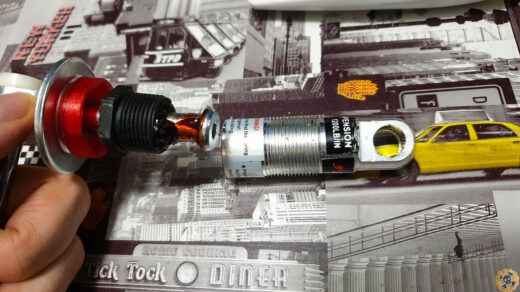

If U got all parts then open the shock, remove the spring and then use bigger wrench to unscrew middle BiG black nut ***( if U got extra seal printed also unscrew bolt from main shock shaft to remove black nut )

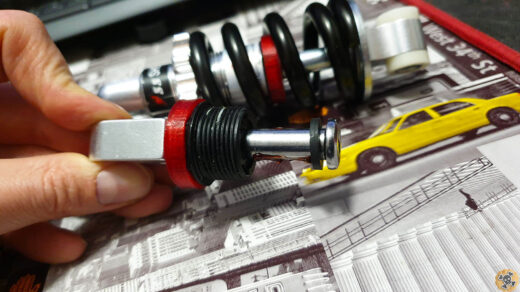

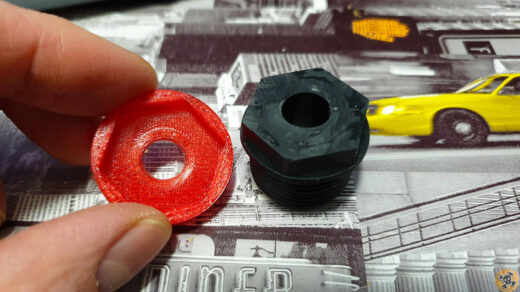

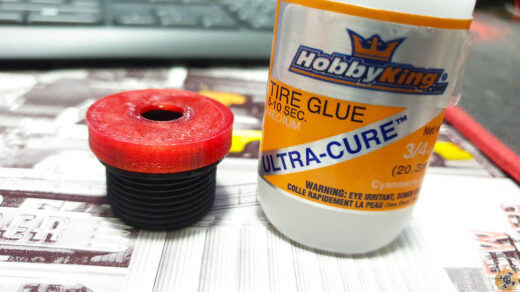

*** If you got extra Seal, glue it to the black nut , then place it back on fork shaft and secure it by screw.

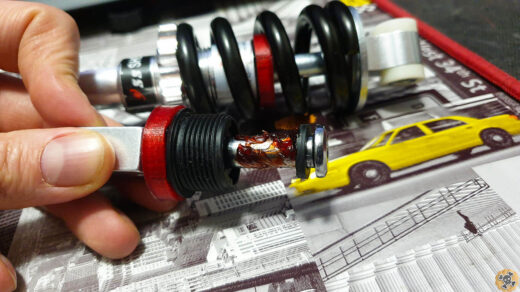

On shock shaft add lots of lubricant, in my case I used grease for bearings ( it has to be full synthetic , cause U got rubber and metal parts ).

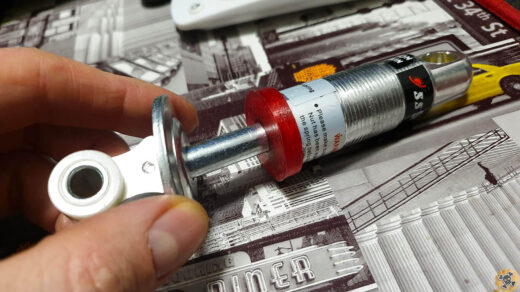

Screw big nut back

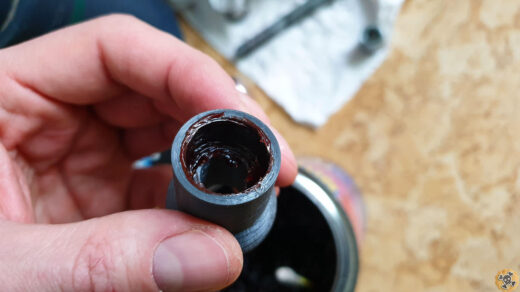

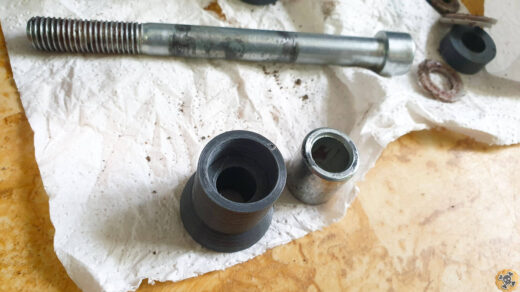

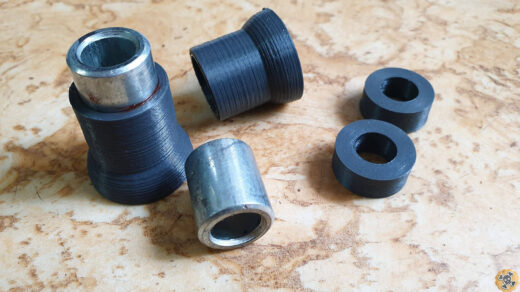

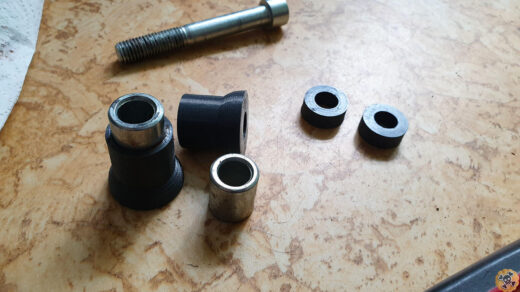

Now add some grease inside big printed spacers and slide in stock aluminium spacers

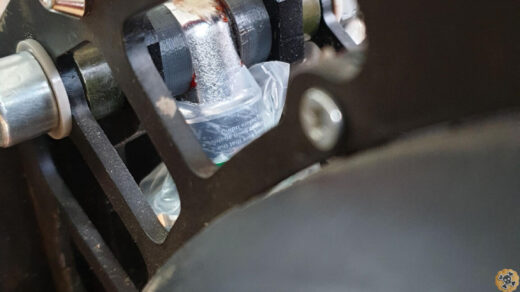

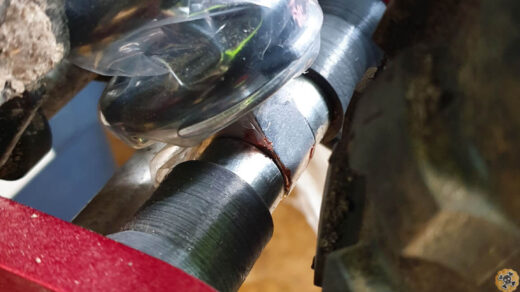

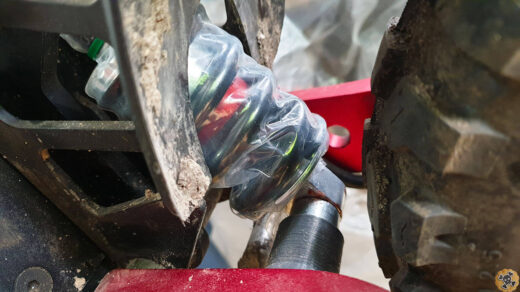

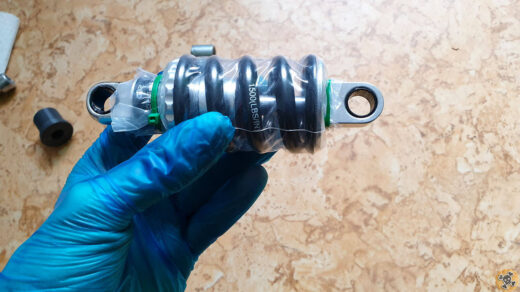

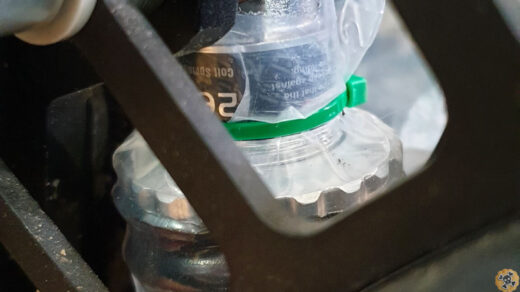

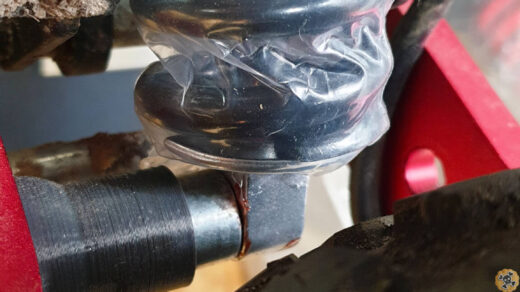

I recommend to cover fork from dust ( Even Oil one , way better life span ) , I used simple bag and zipps 🤣.

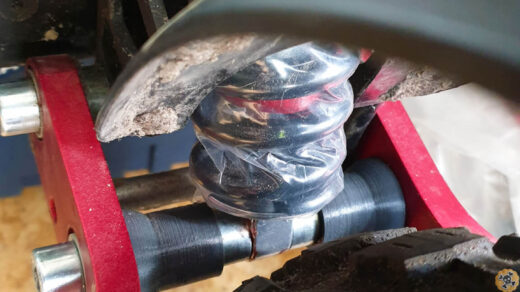

Now lubricate bolts and get all this shit together 💪

** I made this MOD for free, so you can download all files without spending any $ BUT could you send even 1$ for animal shelters ?! I promisse, your life will be happier when you do it, cause U will help someone who really need it 💪 **

🍻🍕 Do you 💘 Pirate ⁉ and want to Support ‼ 🍕🍻 Banggod bit.ly/PirateBG ( buy what U like from link ) Gearbest bit.ly/PirateGB ( buy what U like from link ) 💰 www.patreon.com/pirateonpatreon Or just leave some positive comment and make my Day 🍕🍻
