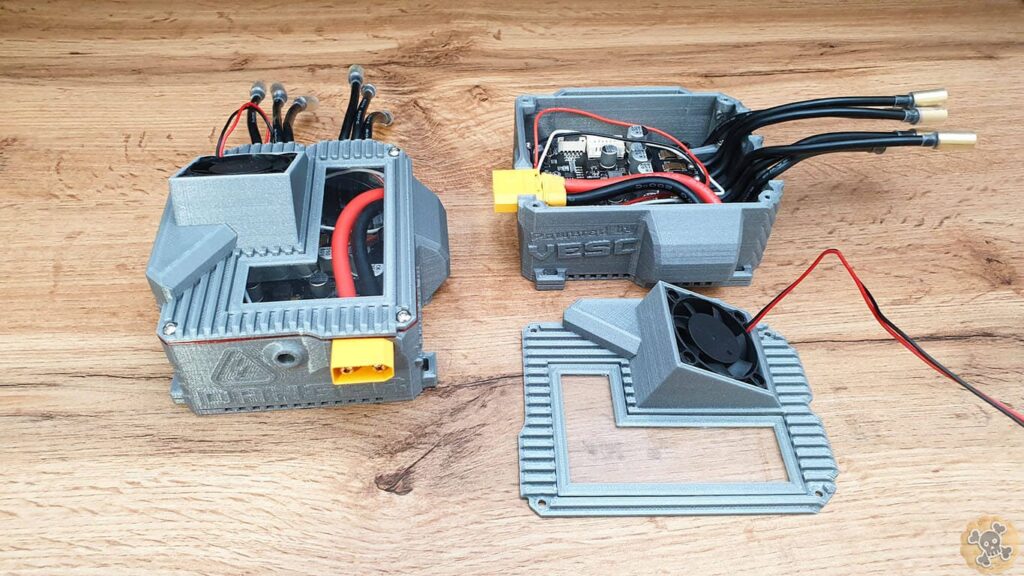

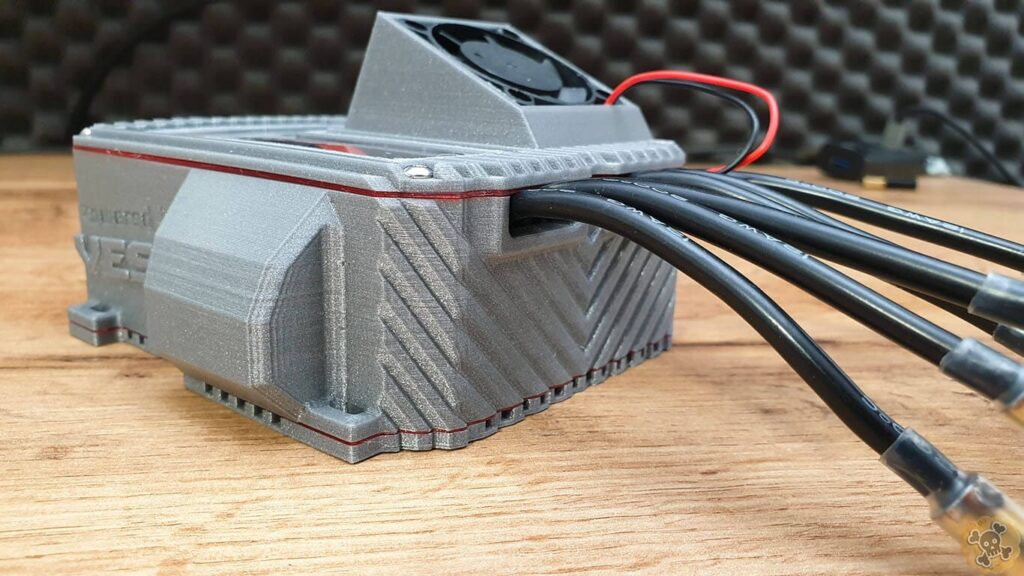

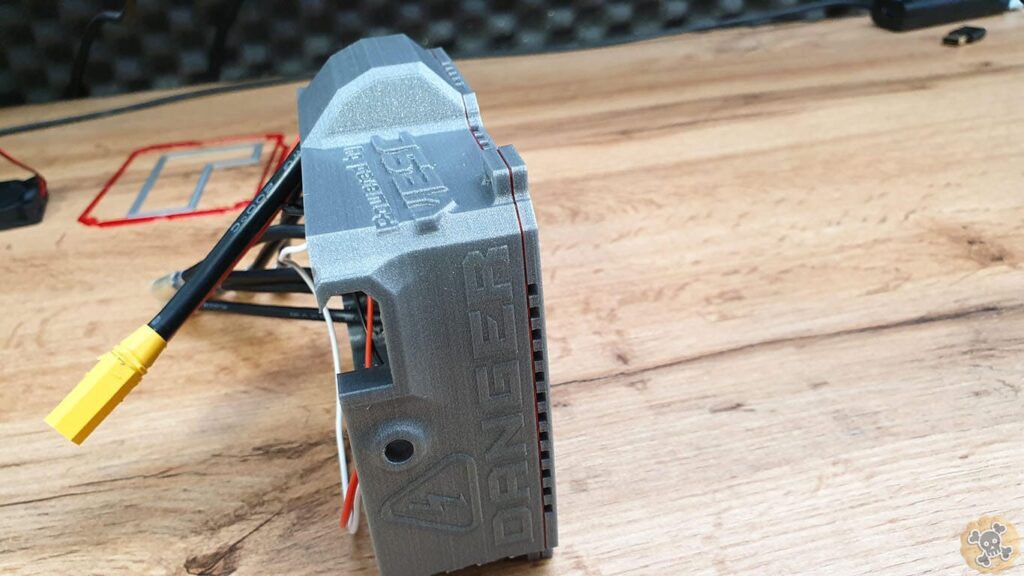

Case for Vesc Flipsky 6.6 Dual Mini with active cooling & window Designed by Pirate ? Files Included ?
Vesc 6.6 Dual Mini is one of the cheapest and most powerful controllers for the price, I been using it for quite long time without issues so I decided to make case special for it.
What do you need to make SYL-08 4WD:
- H2C SYL-08 Bg bit.ly/LaotieH2C , ALI s.click.aliexpress.com/e/_Agk5kC
- Vesc 6.6 Dual Mini Vesc 6.6 Dual BG bit.ly/Flipsky66plus x Ali s.click.aliexpress.com/e/_9ikYQj
- 4x Flipsky H6368 BG bit.ly/FlipskyH6368 , ALI s.click.aliexpress.com/e/_AmBZne

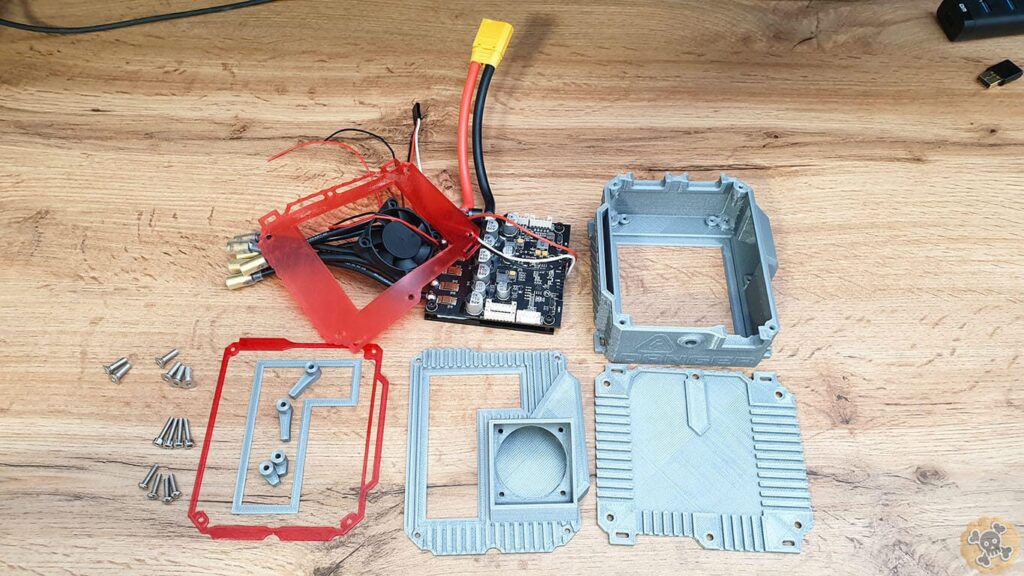

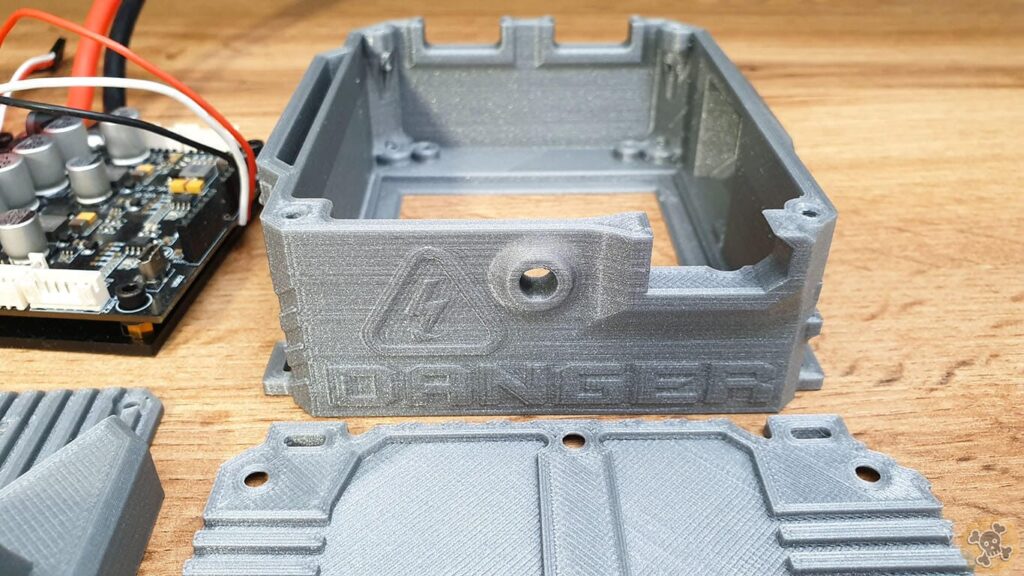

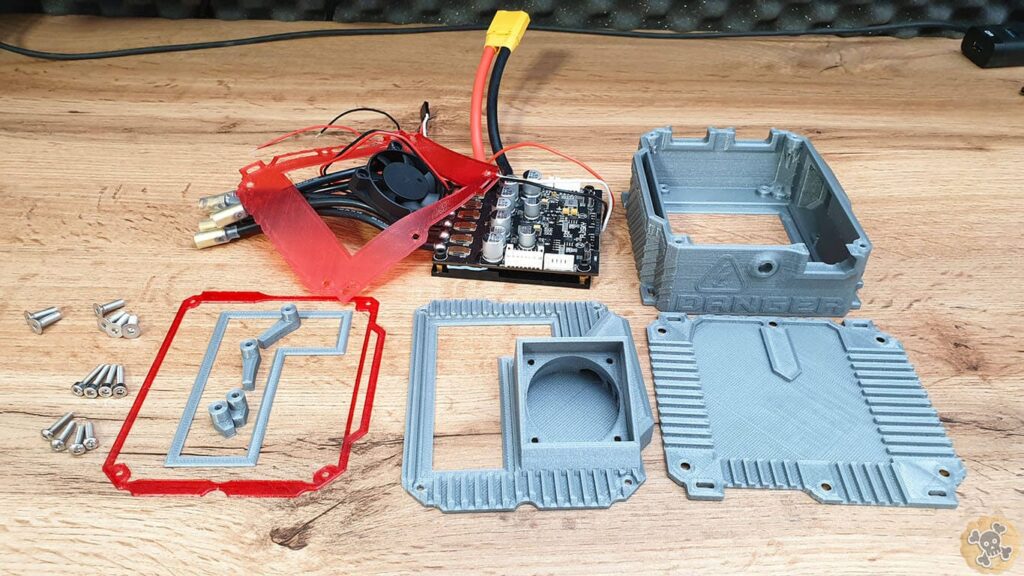

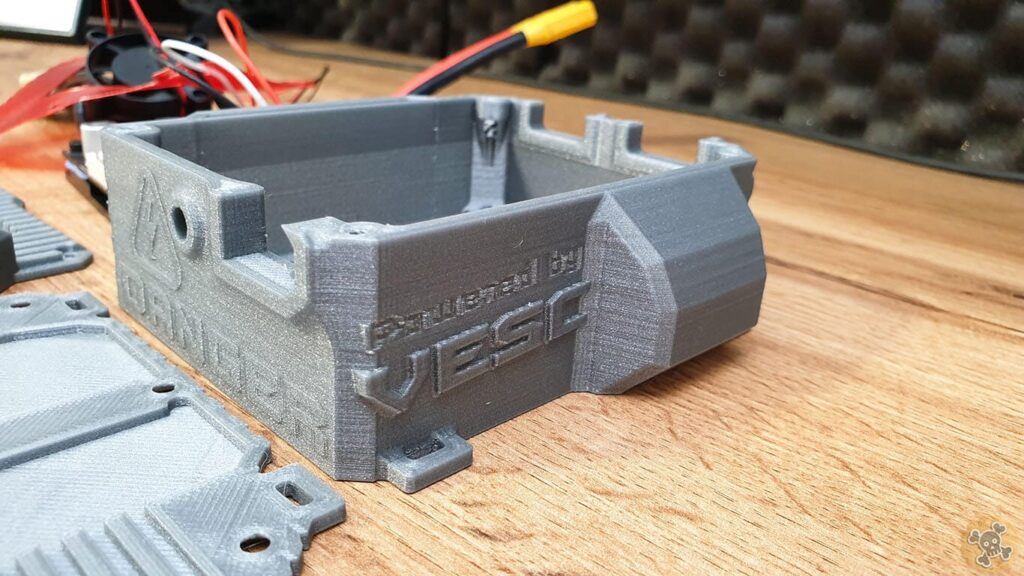

- Printed 3D shell & Gaskets
- Motor Mount , Ali s.click.aliexpress.com/e/_AZ2oIC
- Belt size 15mm x 435 or 445 , ALI s.click.aliexpress.com/e/_9GWNnO
- 2x Wheel with Gear s.click.aliexpress.com/e/_9h55Va
- Fan 40mm 5V Ali s.click.aliexpress.com/e/_ASARQk
- Kaufer ( or other silicone etc… just to seal/secure VESC ) Ali s.click.aliexpress.com/e/_98tkOJ

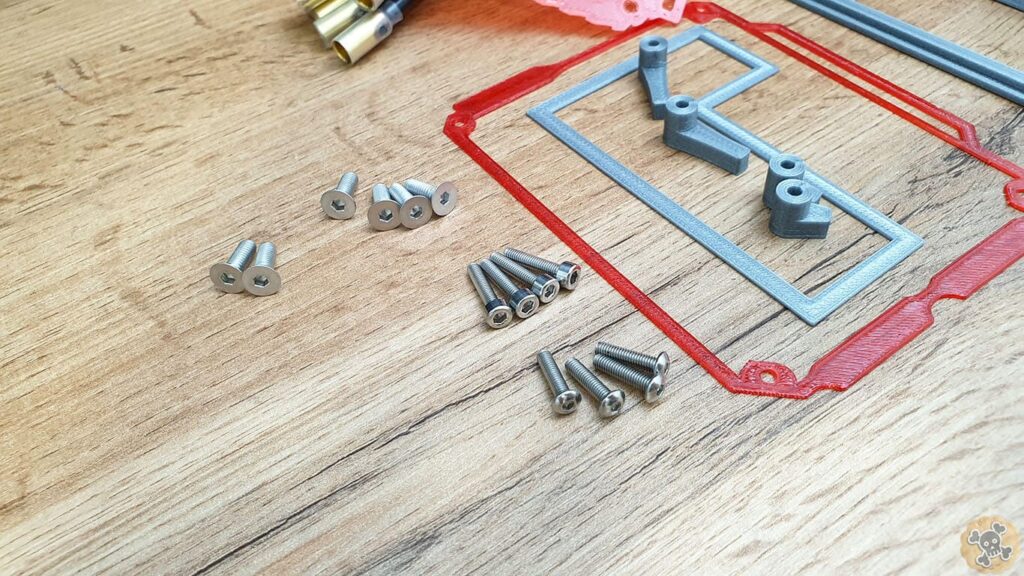

- 6x M4 12mm countersunk
- 4x M3 17mm
- 4x M3 12-14mm

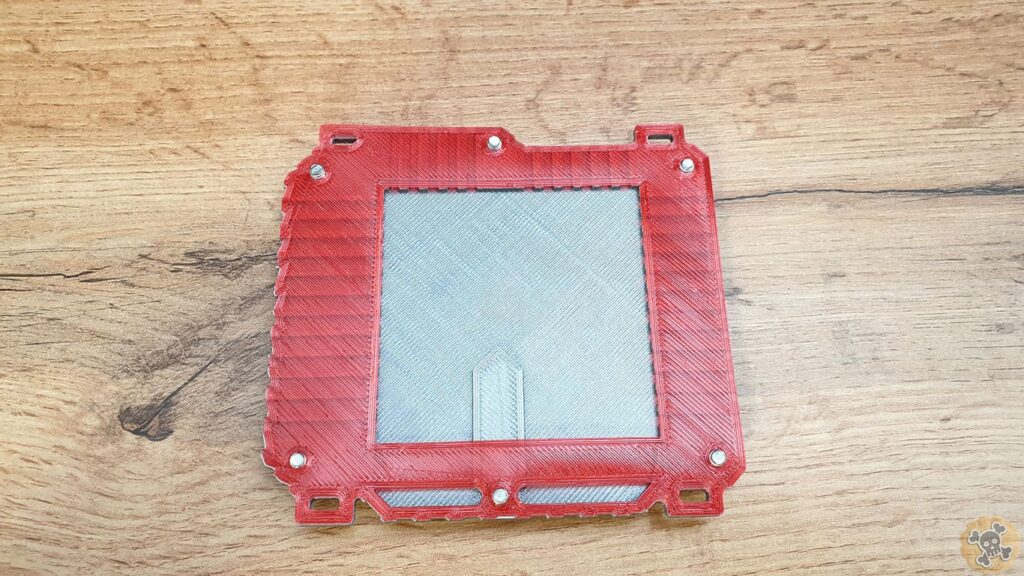

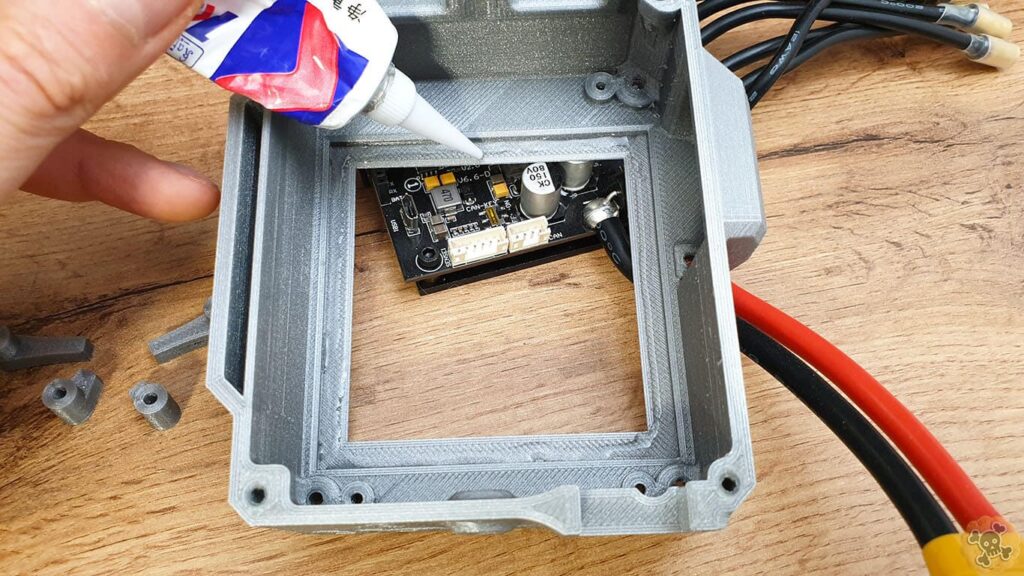

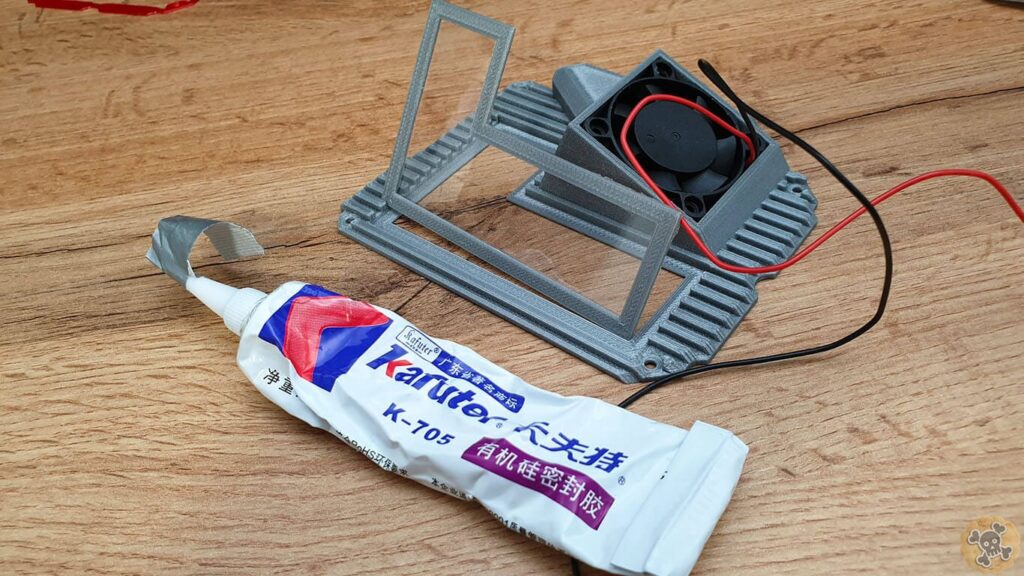

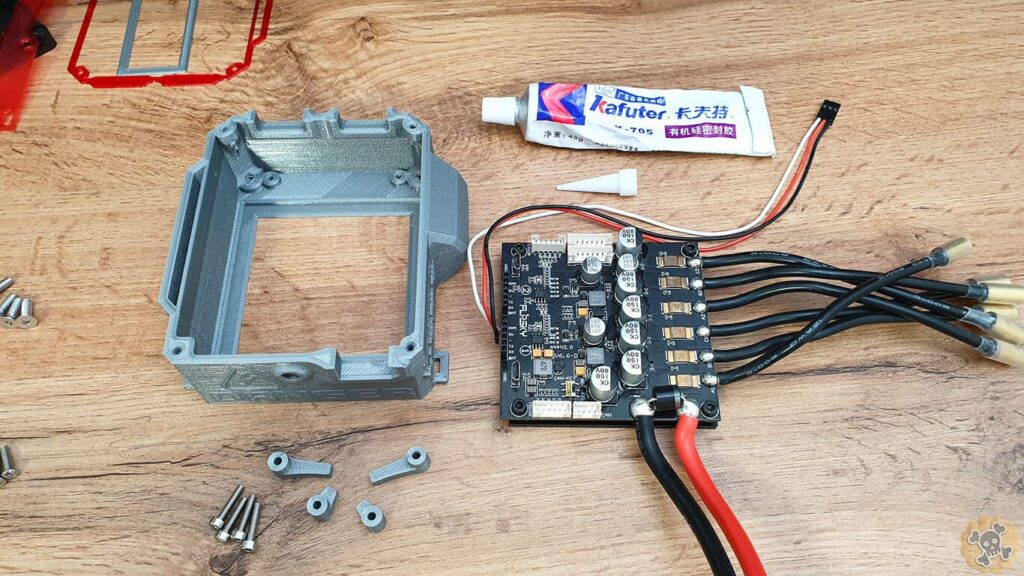

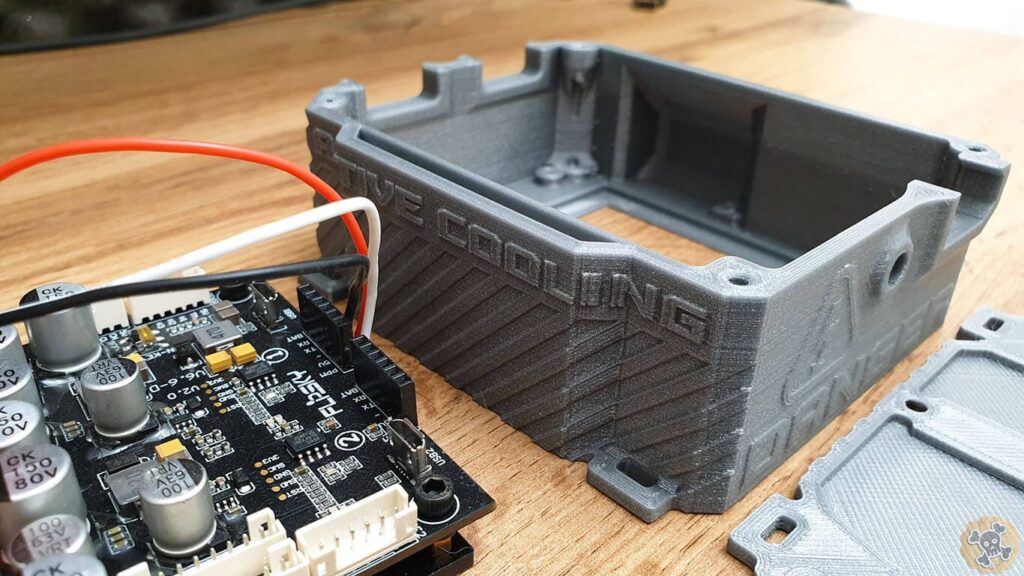

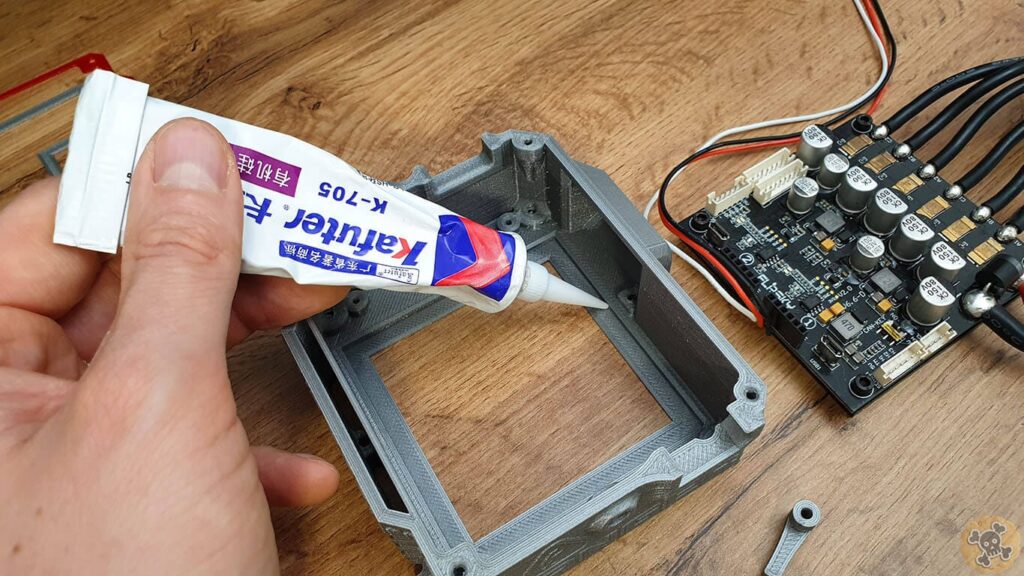

We need to seal space between Vesc and case, add a little bit of kaufer

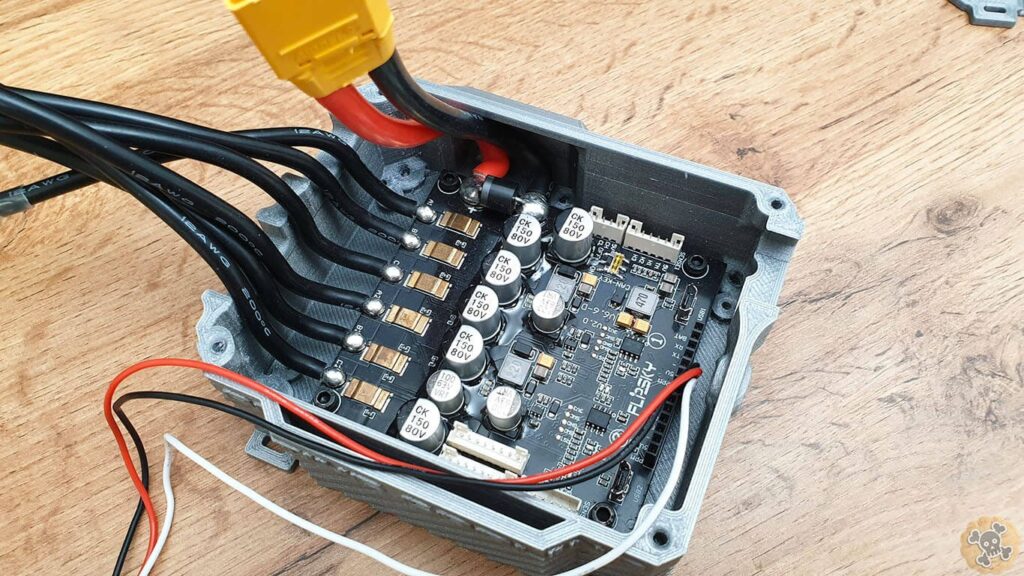

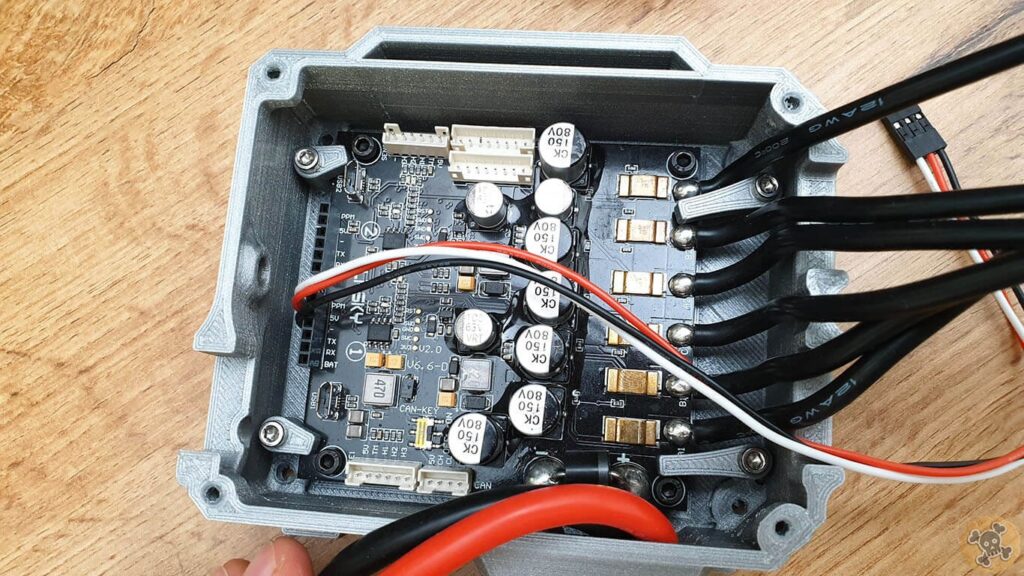

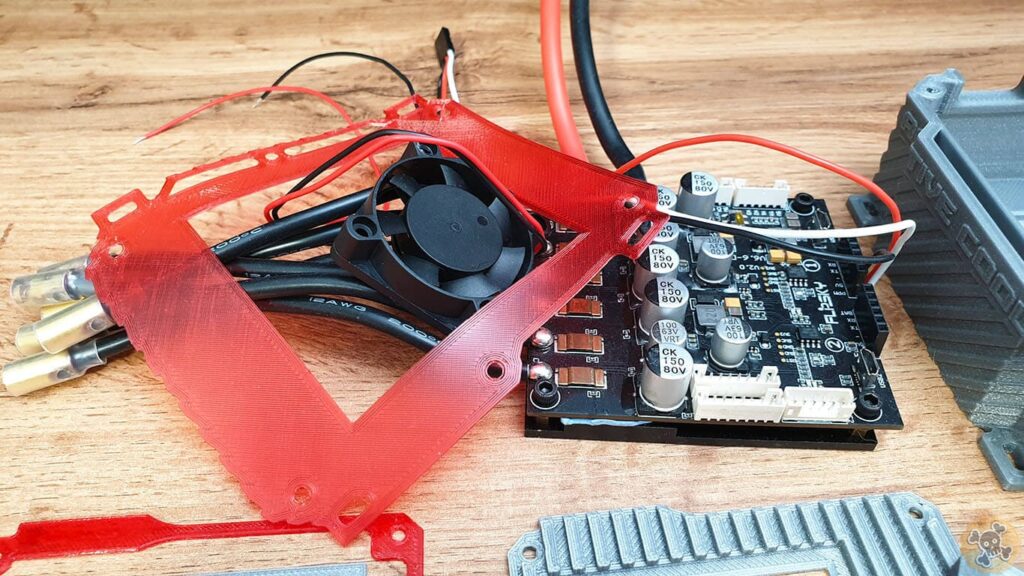

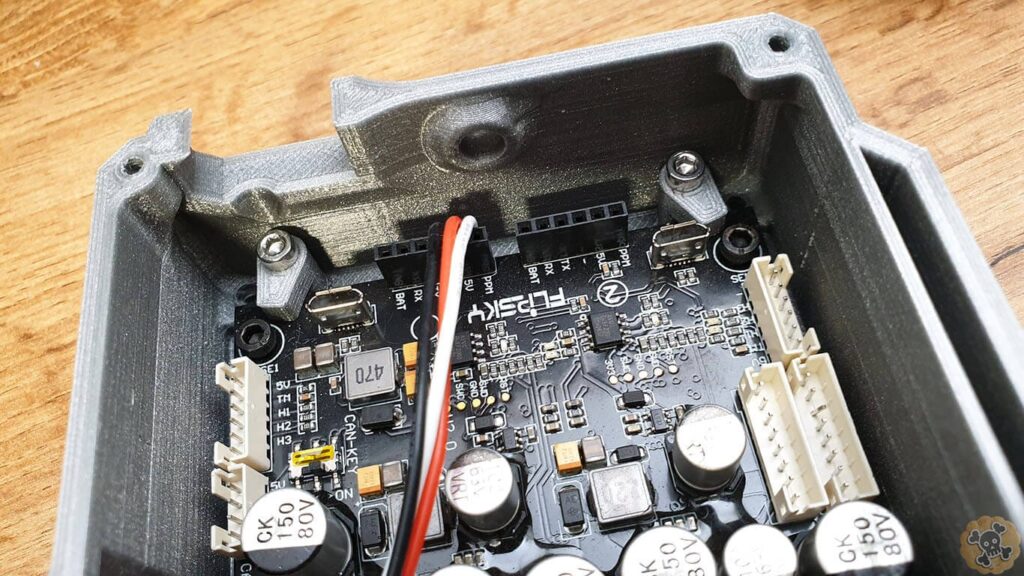

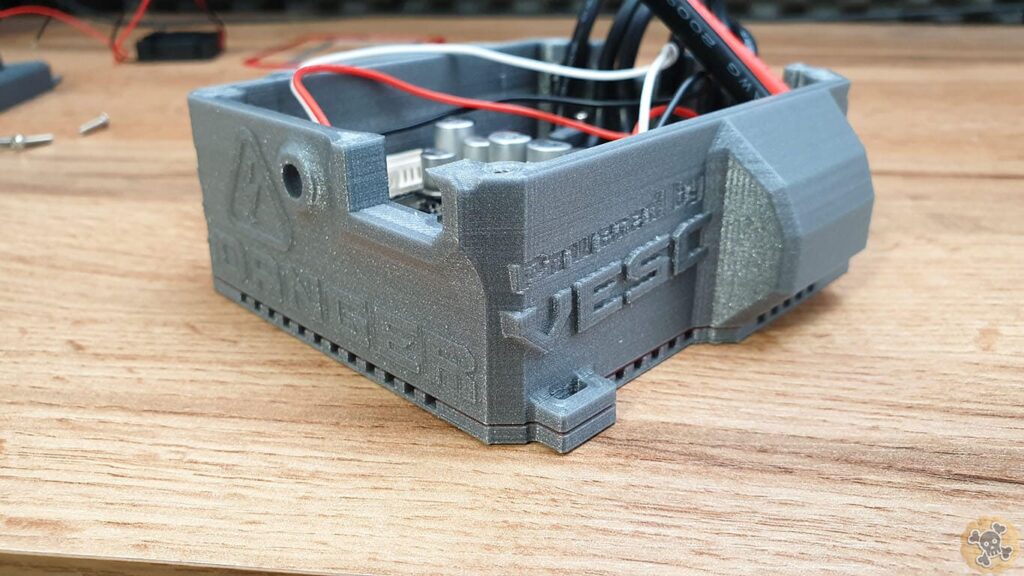

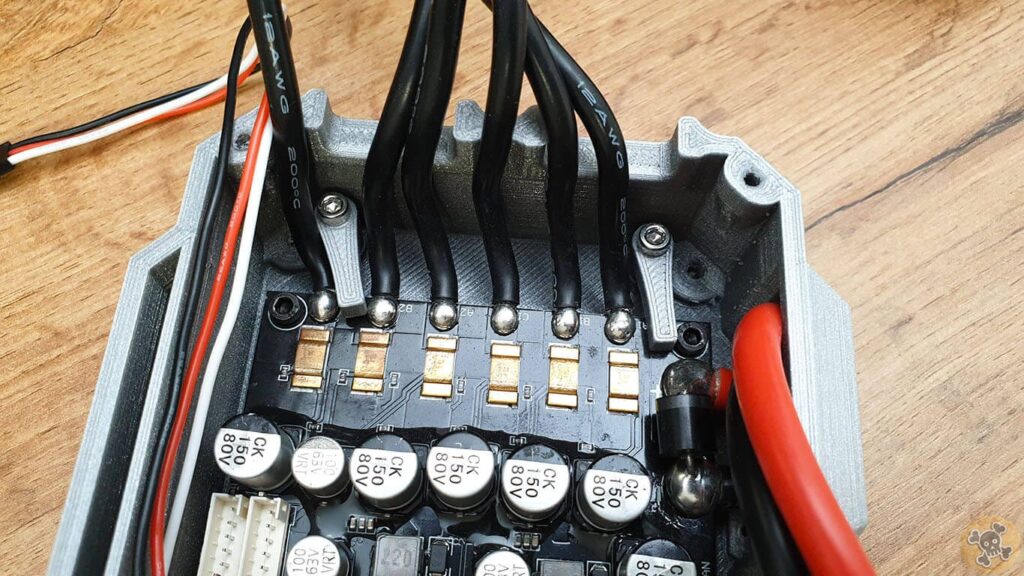

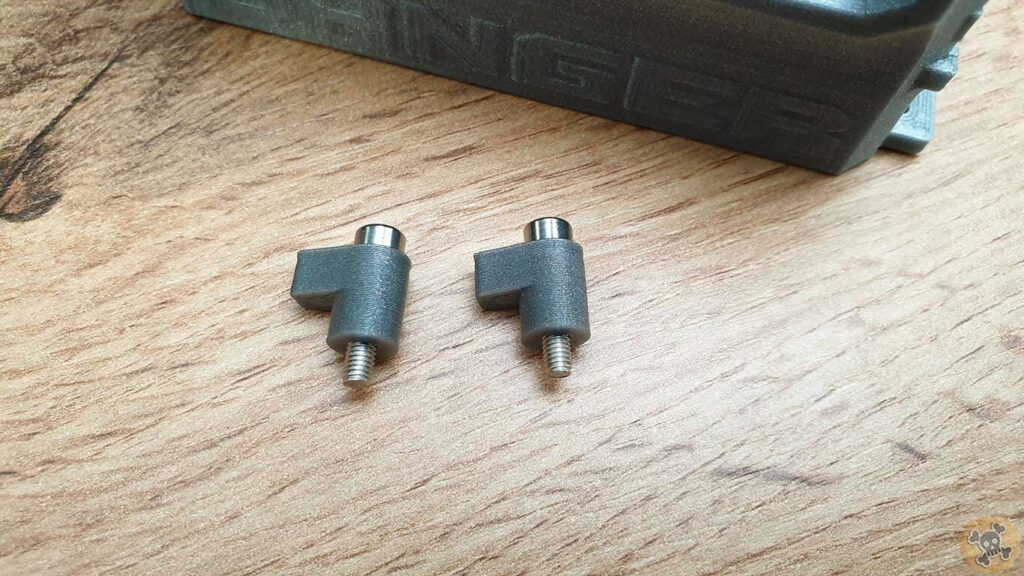

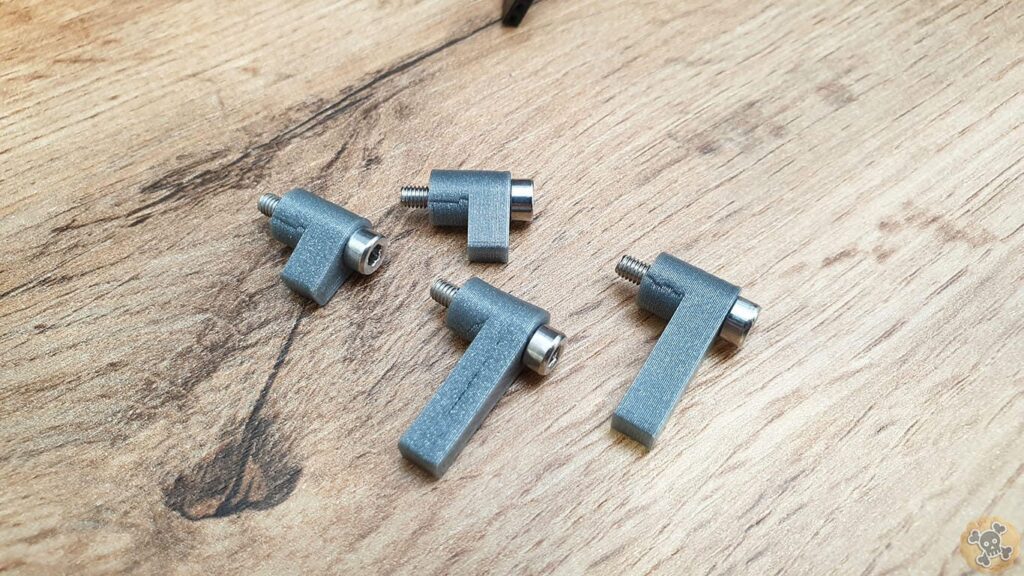

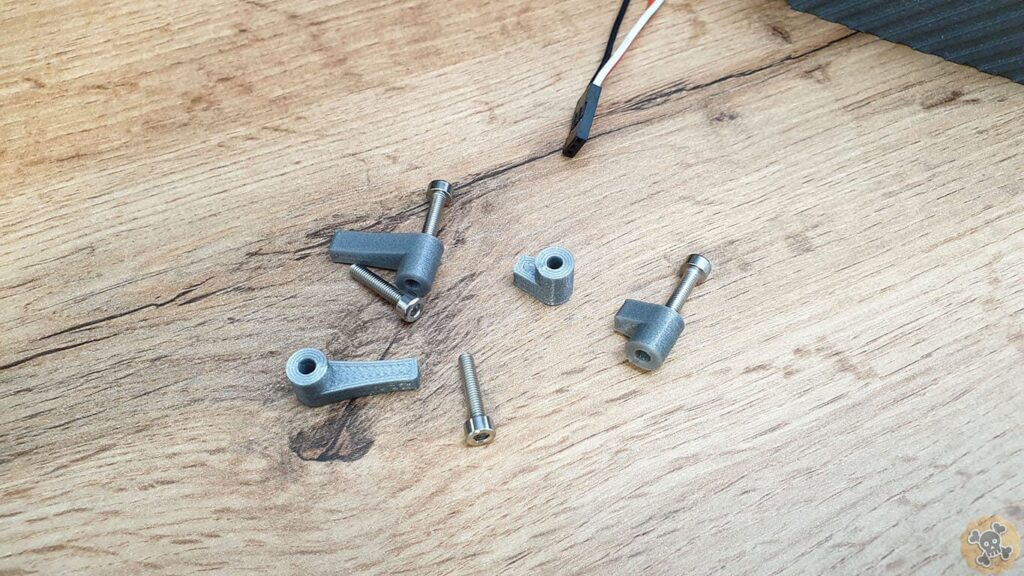

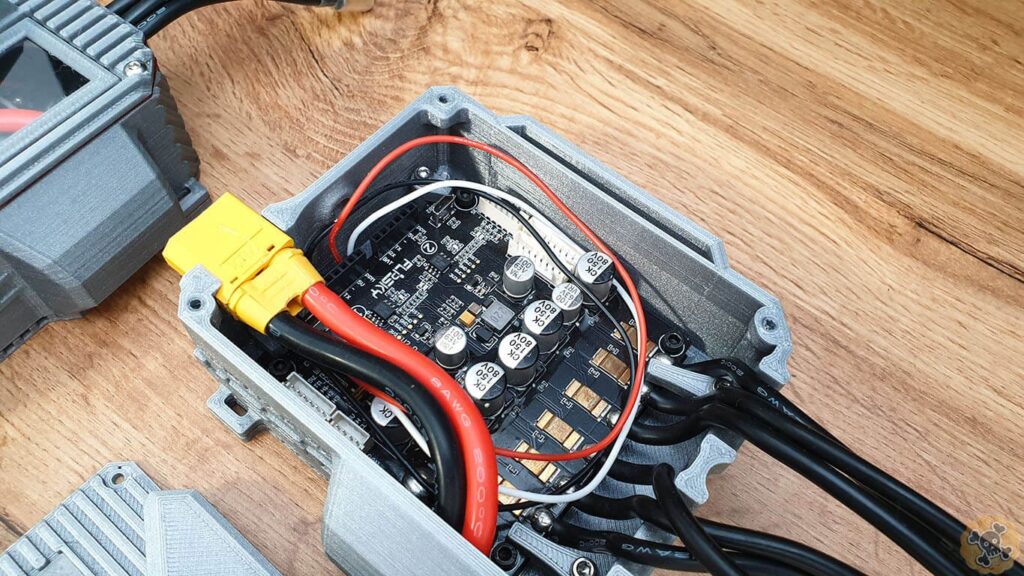

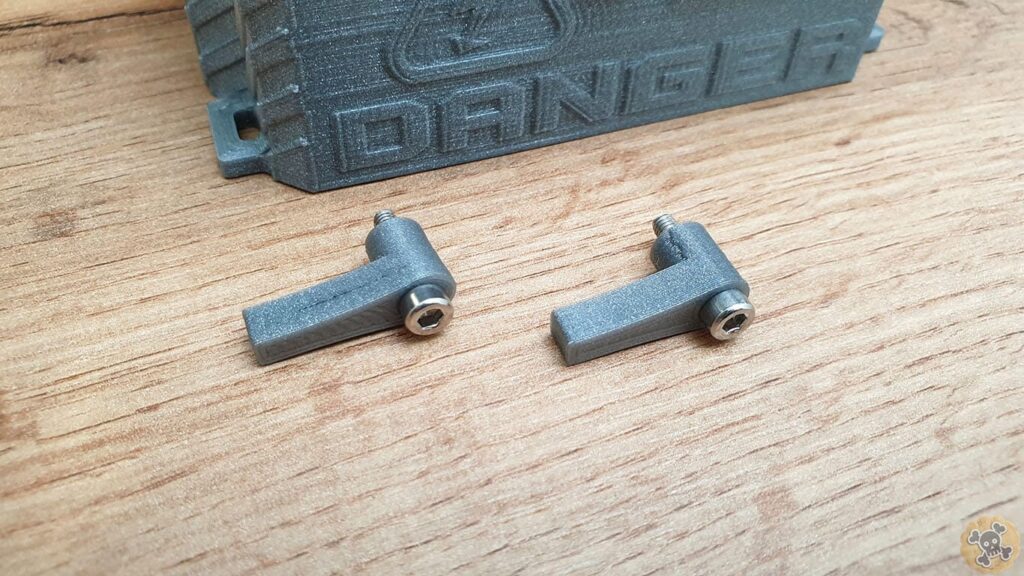

Now us 4x M3 17mm and secure the VESC to the case as you can see on pics

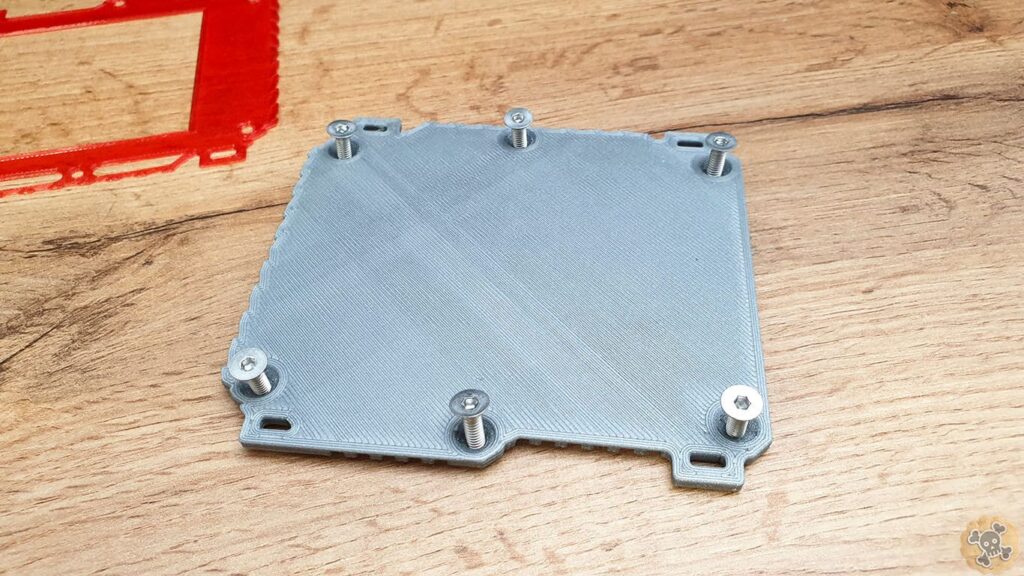

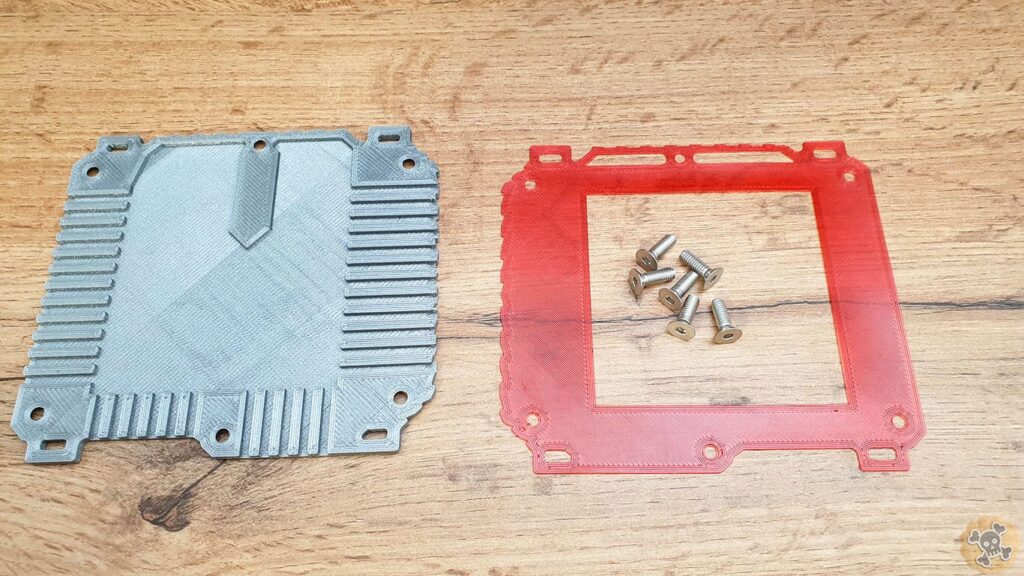

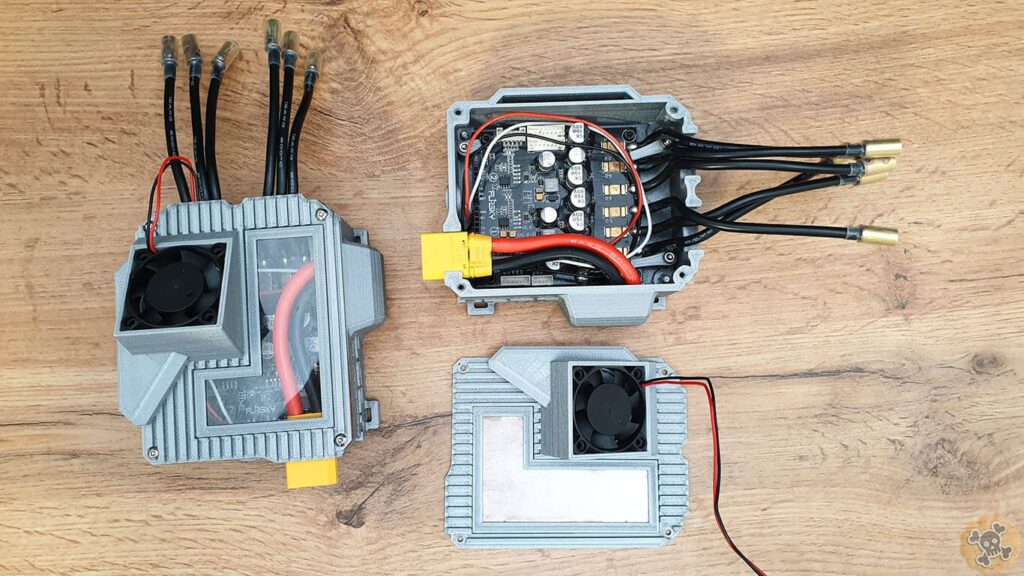

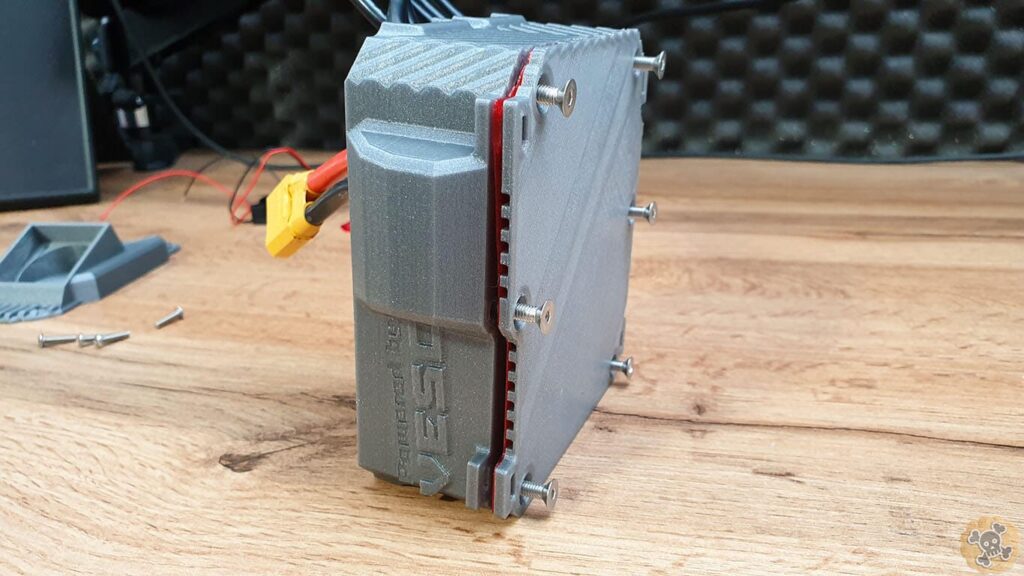

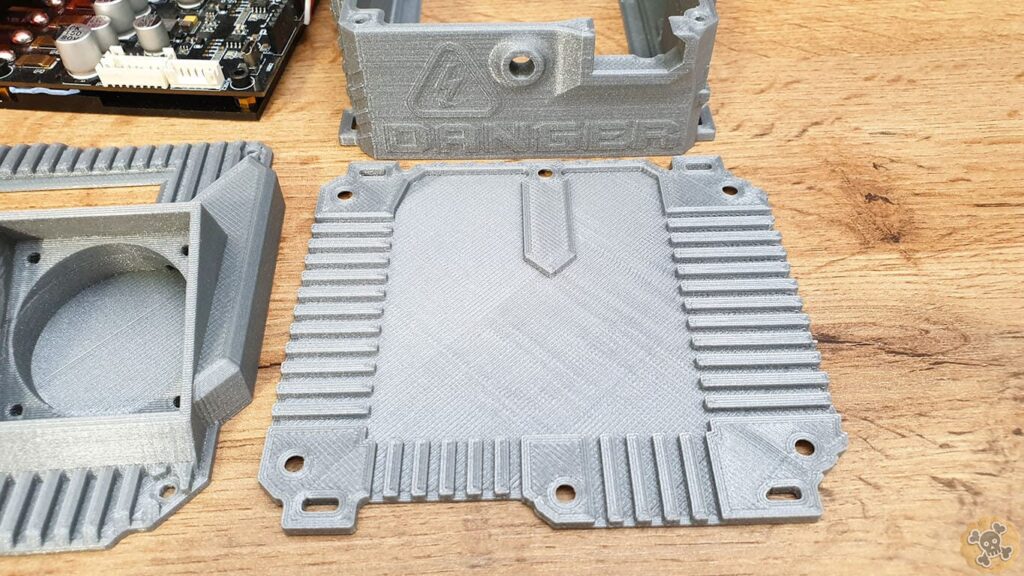

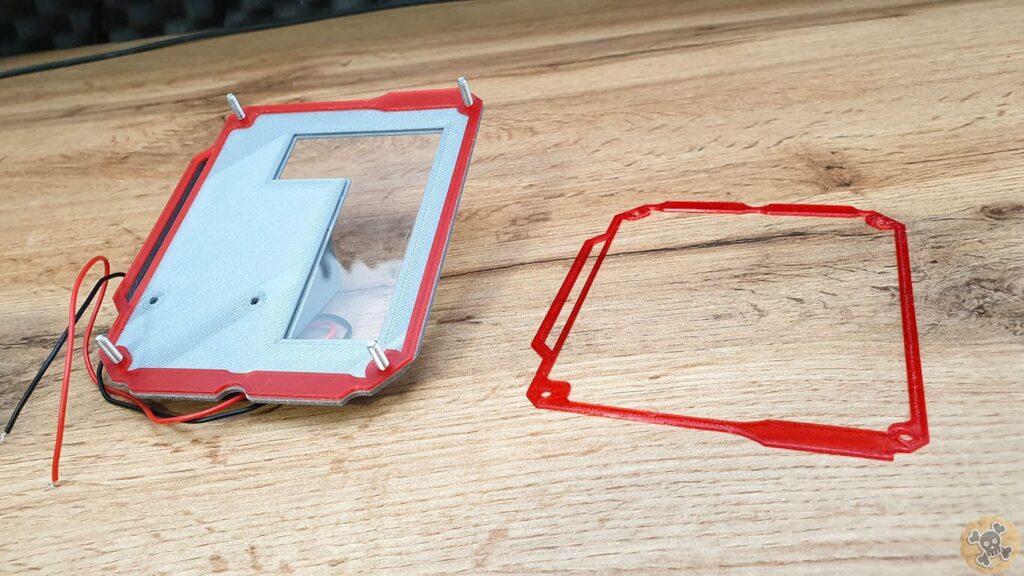

Use 6x M4 12mm countersunk , bottom part & gasket

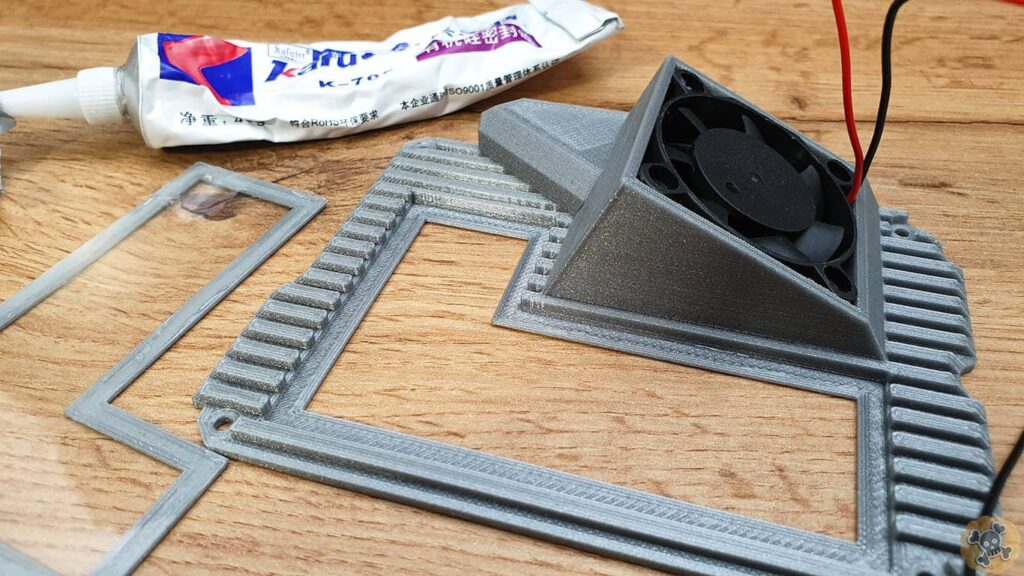

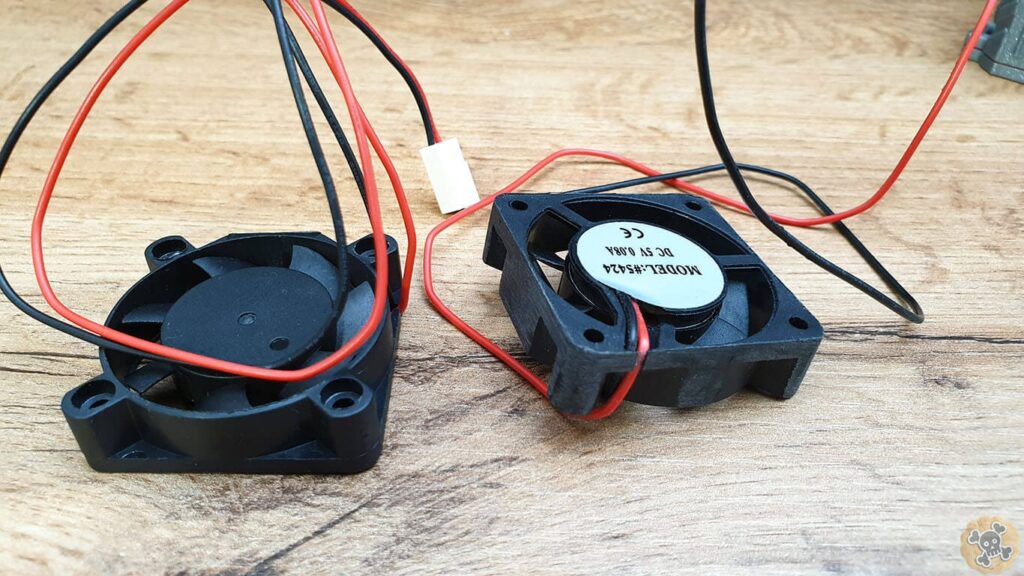

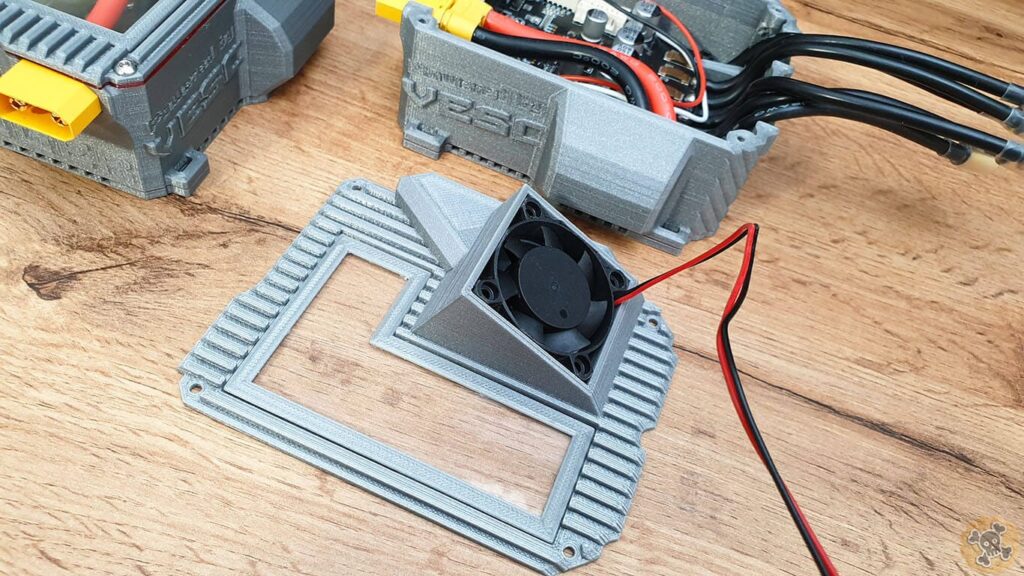

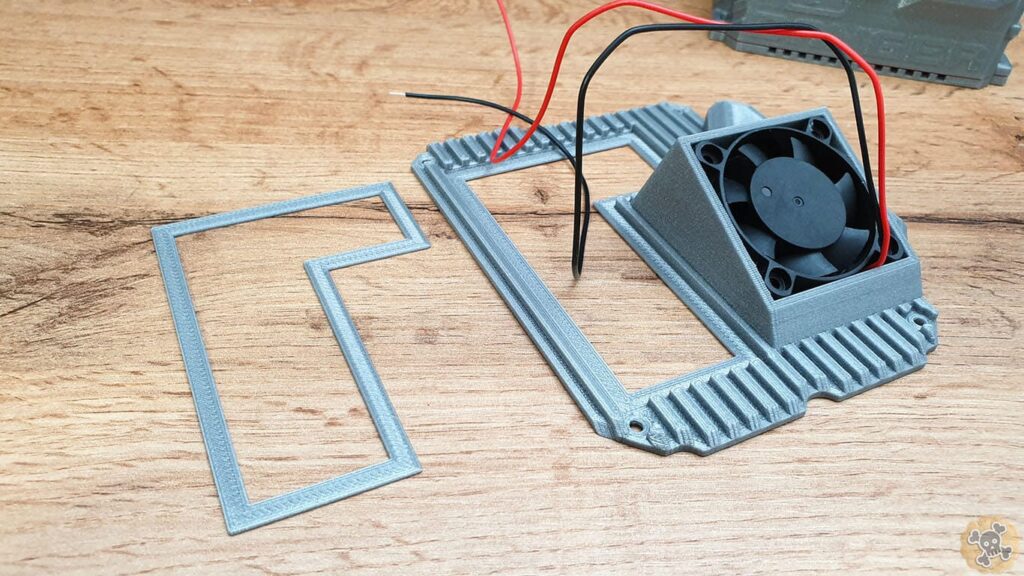

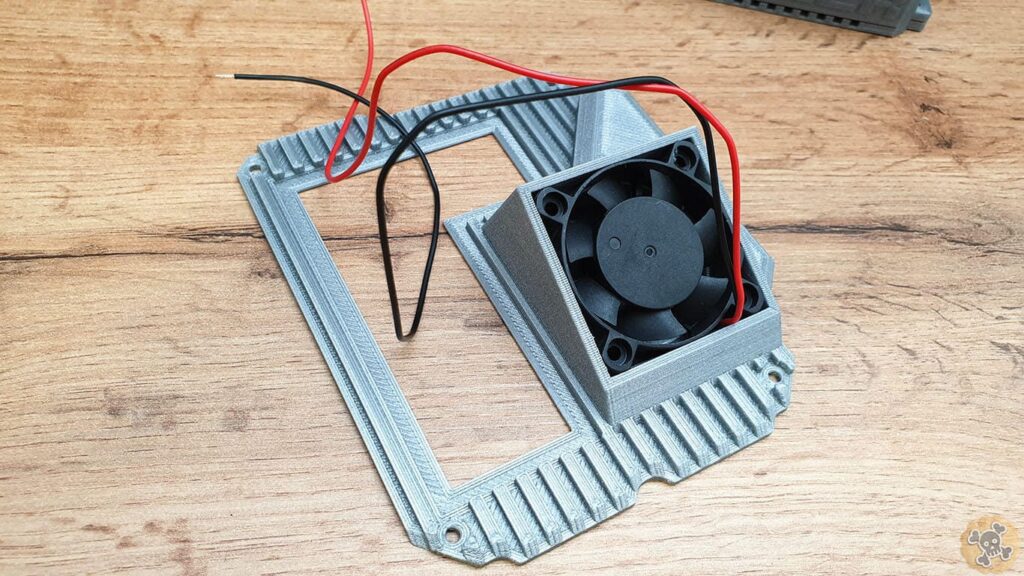

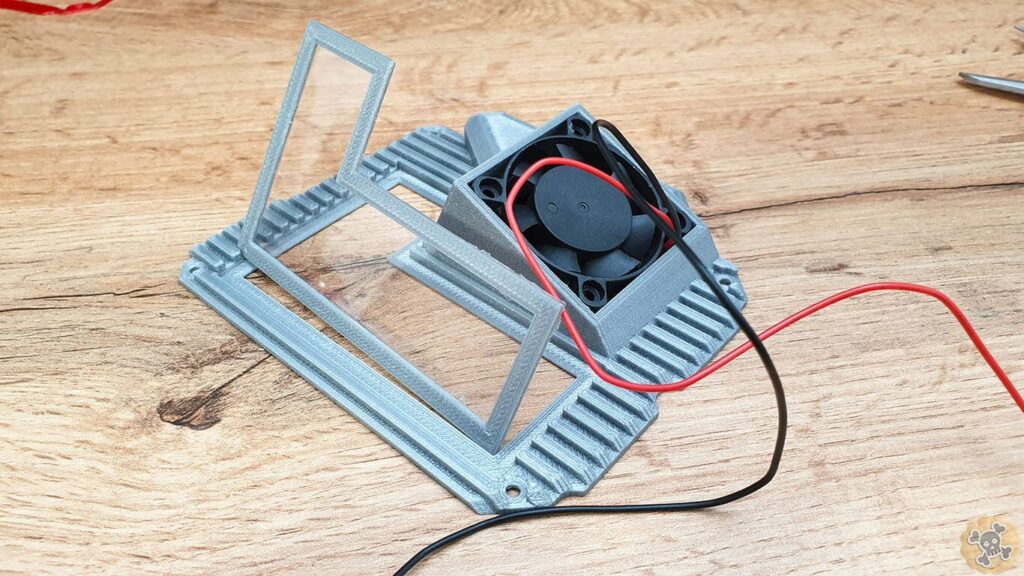

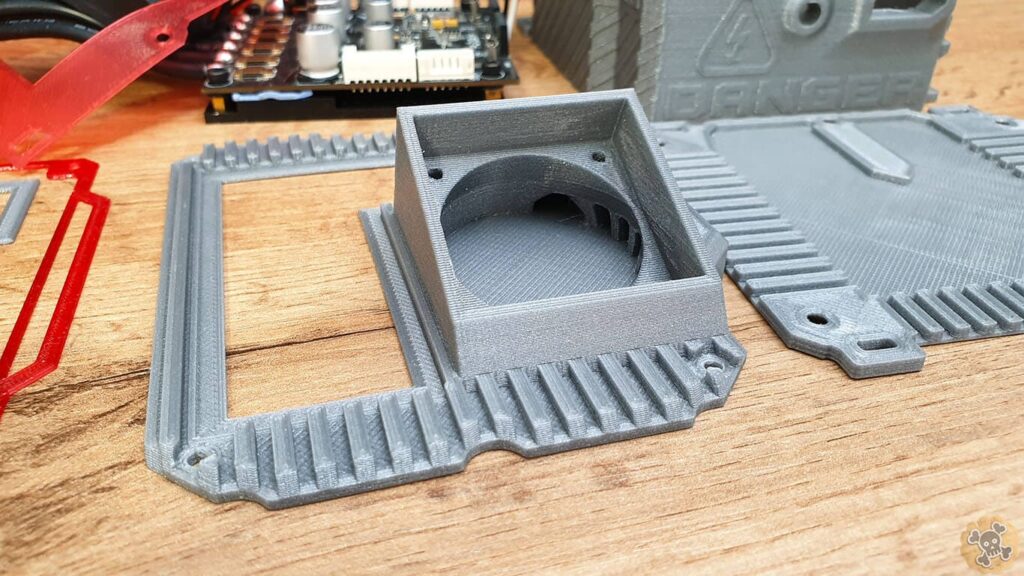

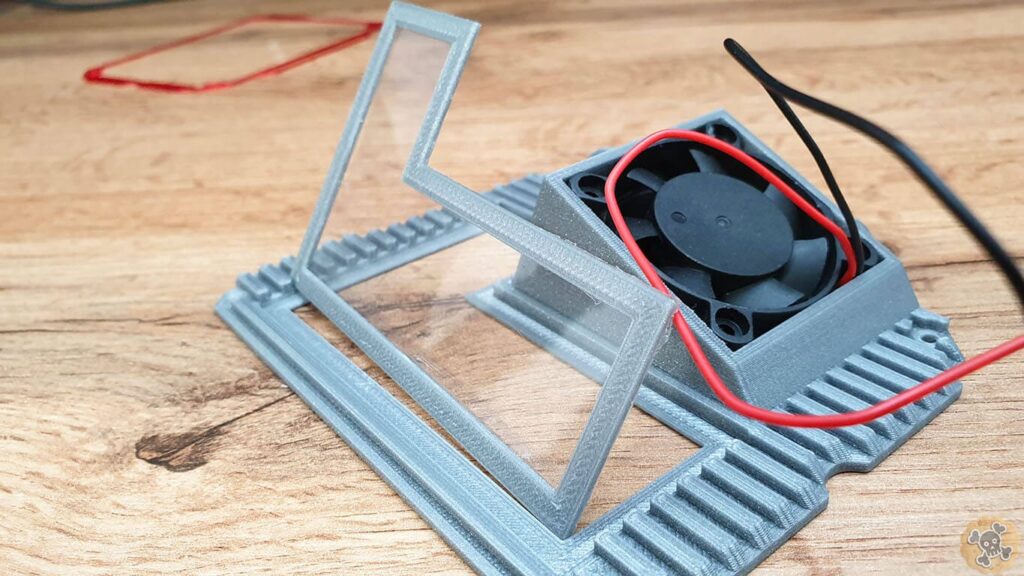

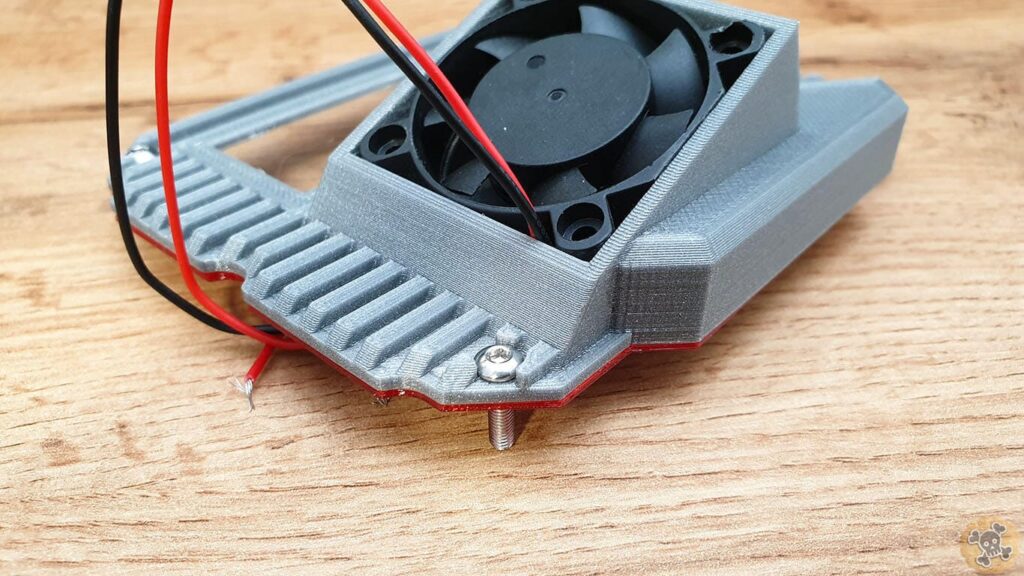

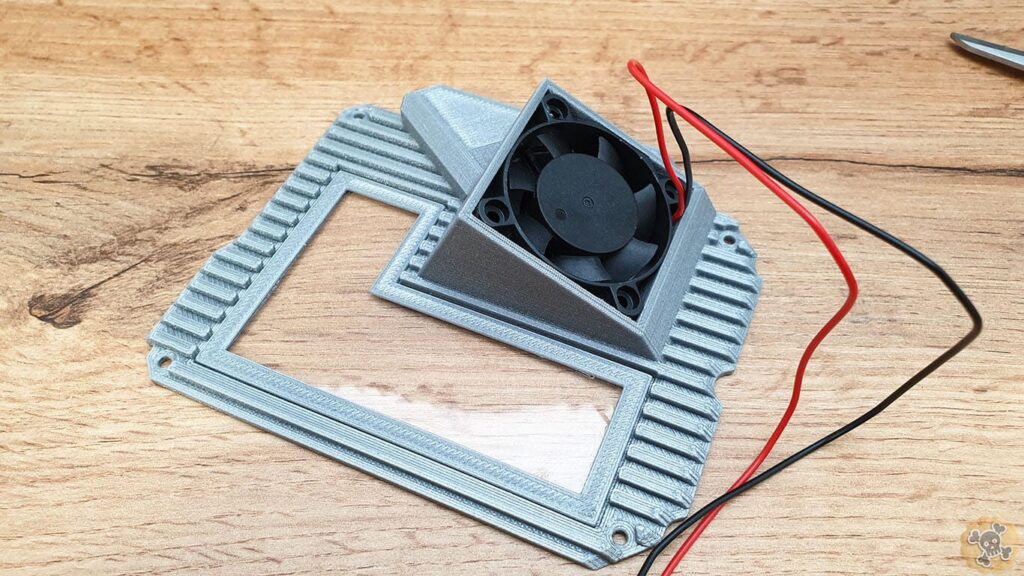

If 40mm fan will not fit easily, grind walls of the fan a little bit.

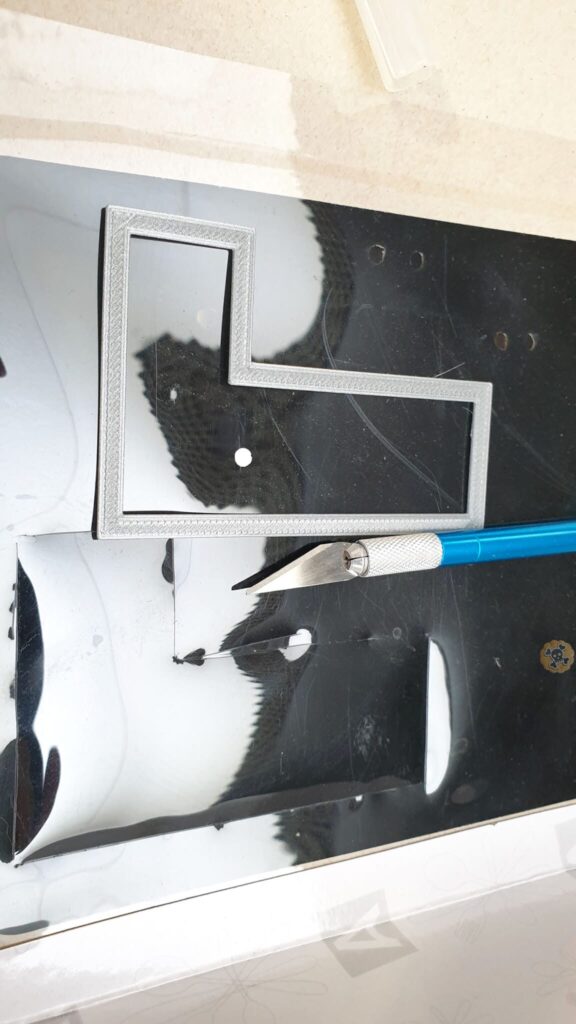

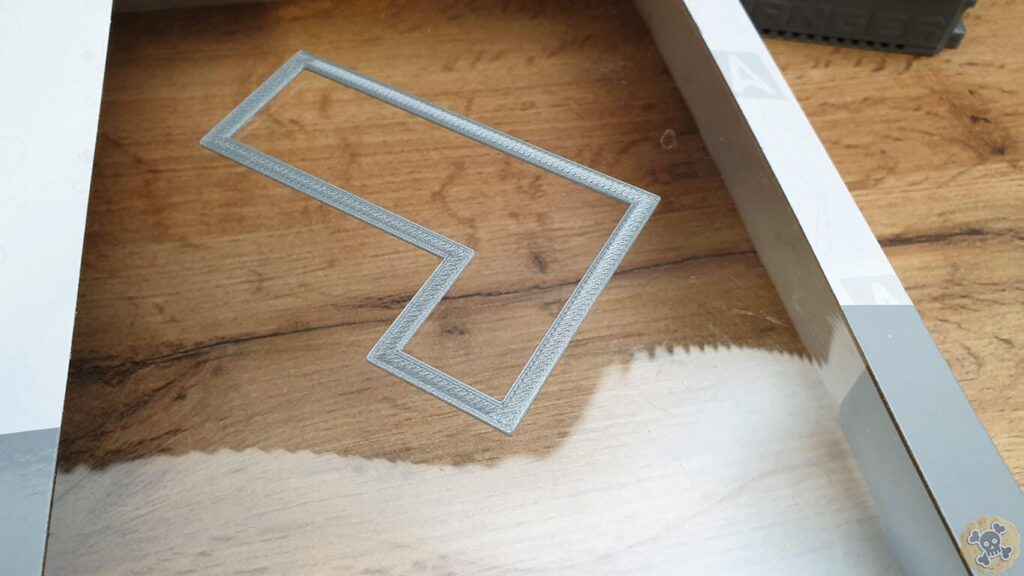

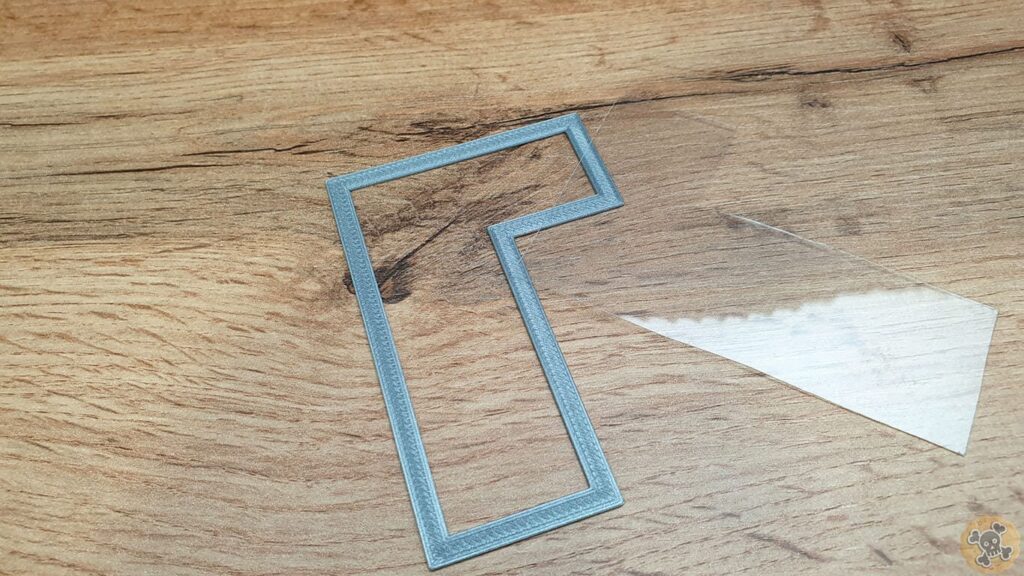

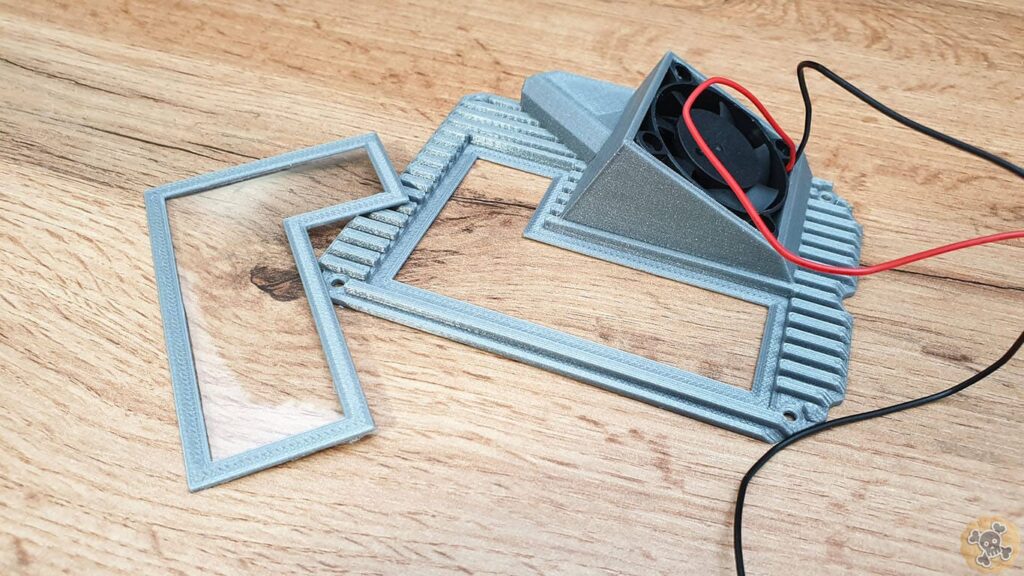

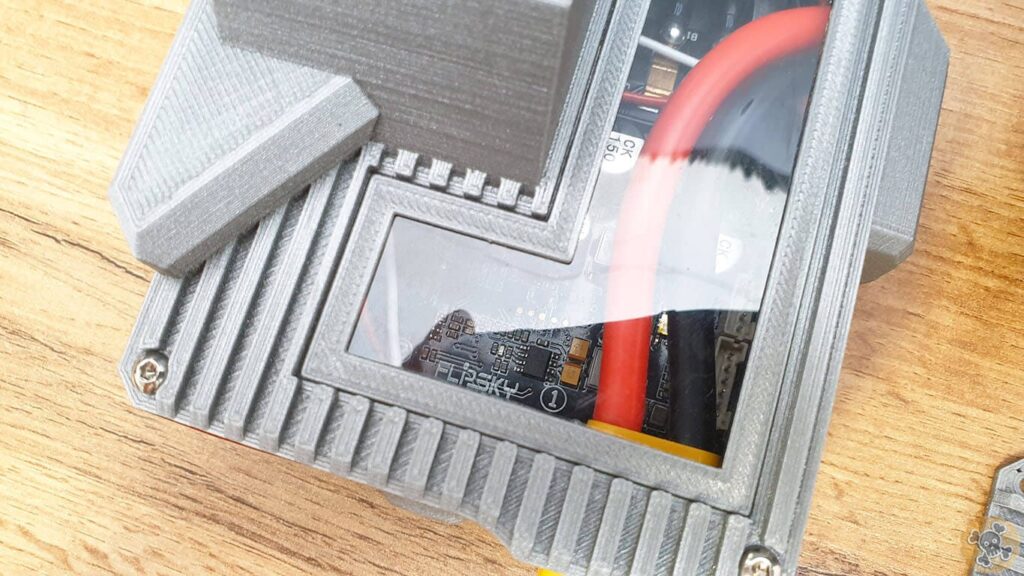

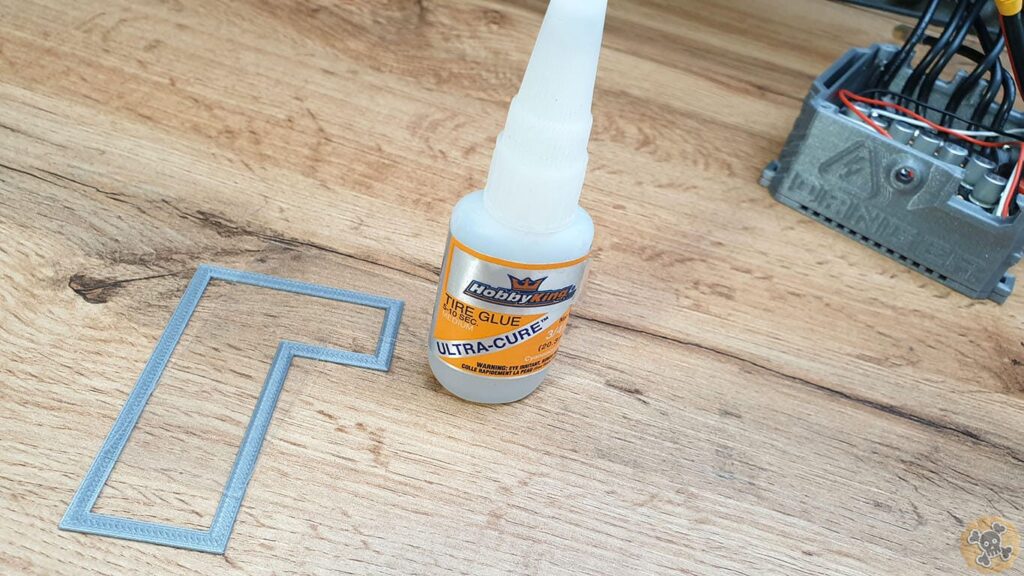

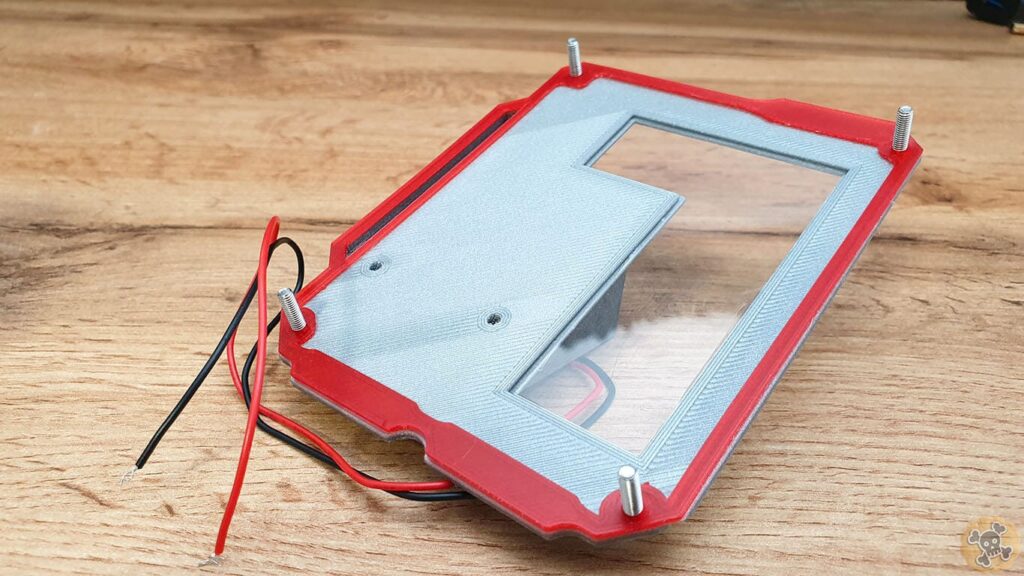

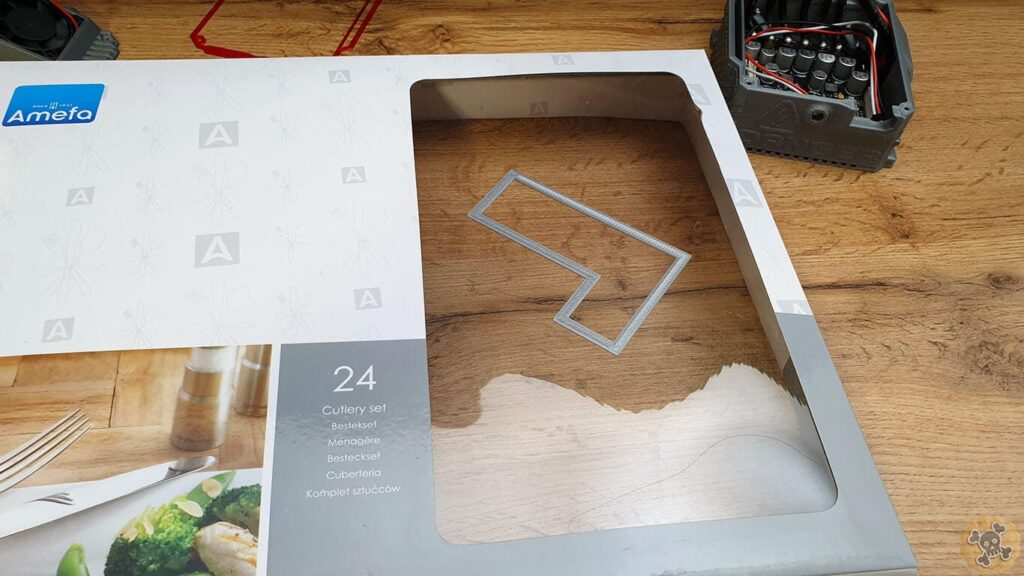

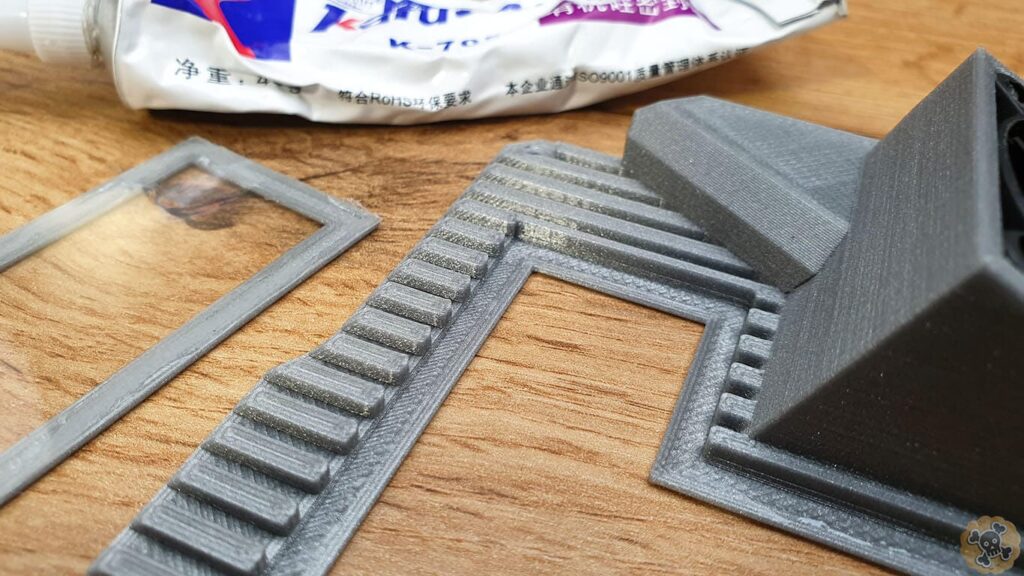

To make window I used some transparent plexi from old box, but I do recommend to use some HQ 1mm thick plexi glass. I also used super glue which is bad idea cause it can damage easily thin pelxi, go with sticky silicone kaufer or something.

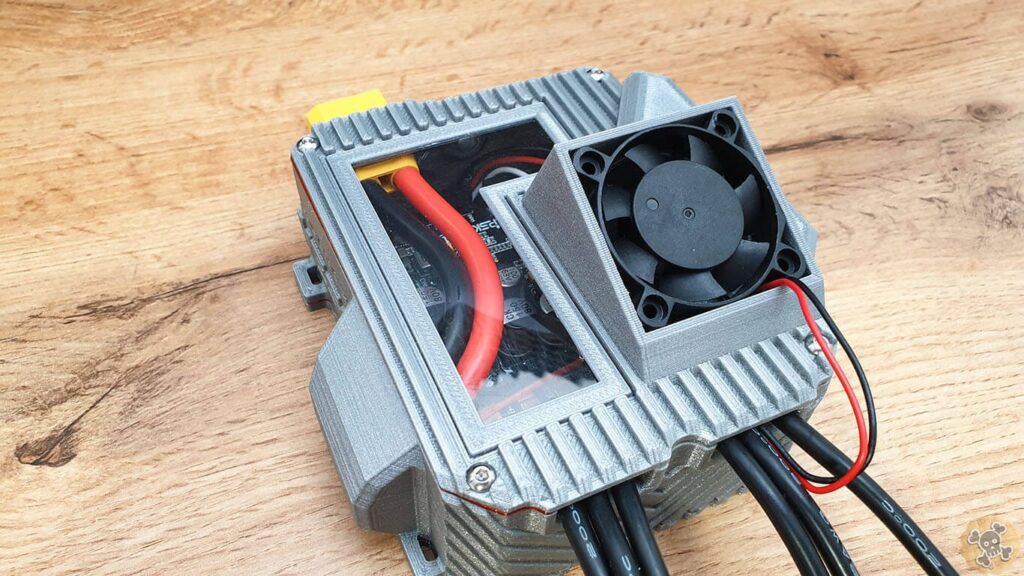

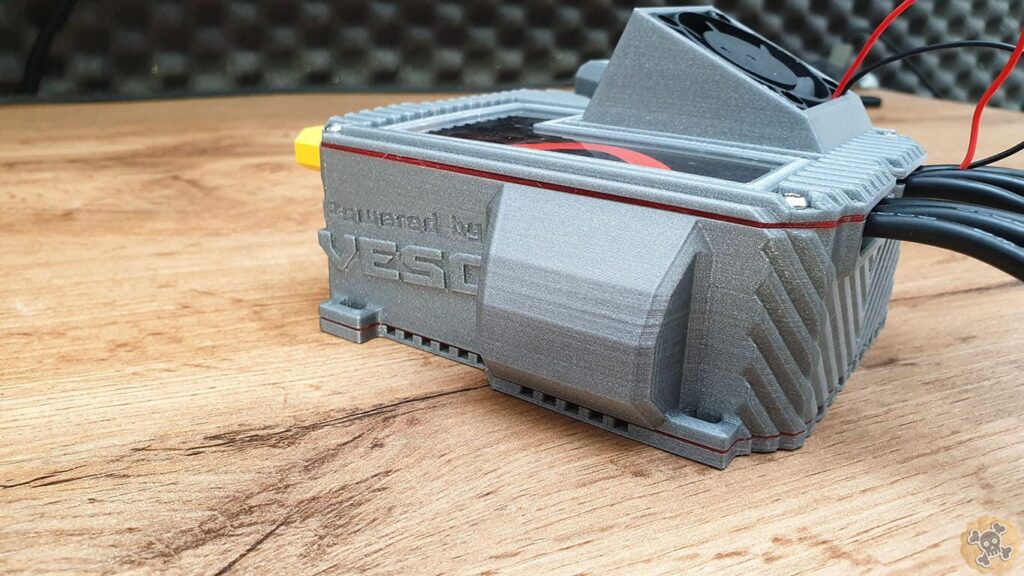

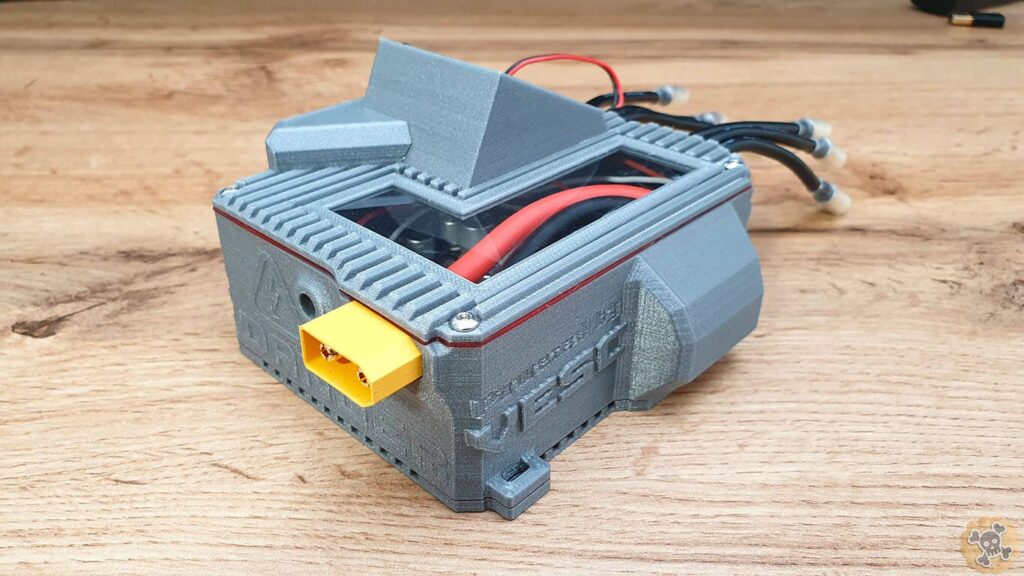

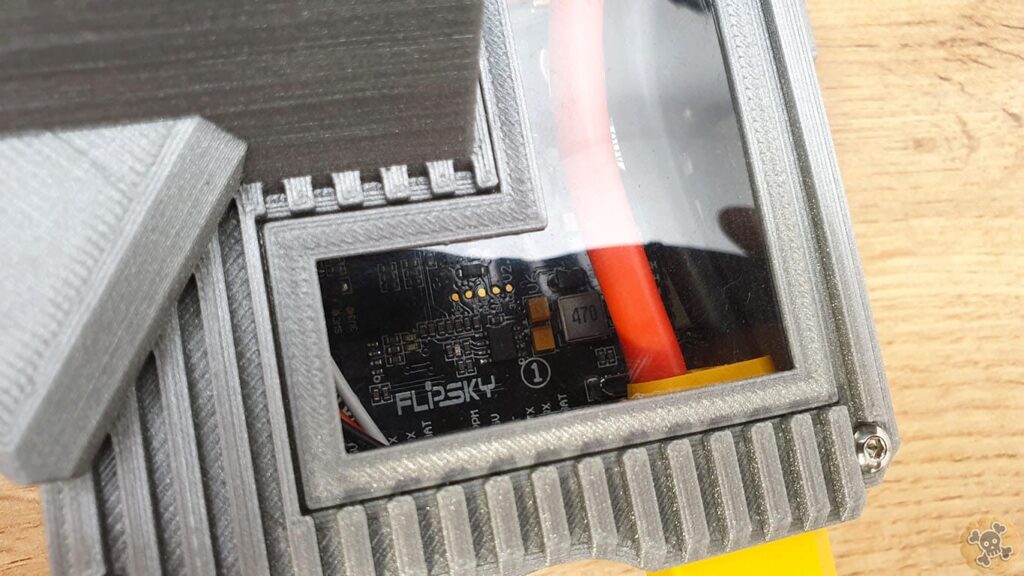

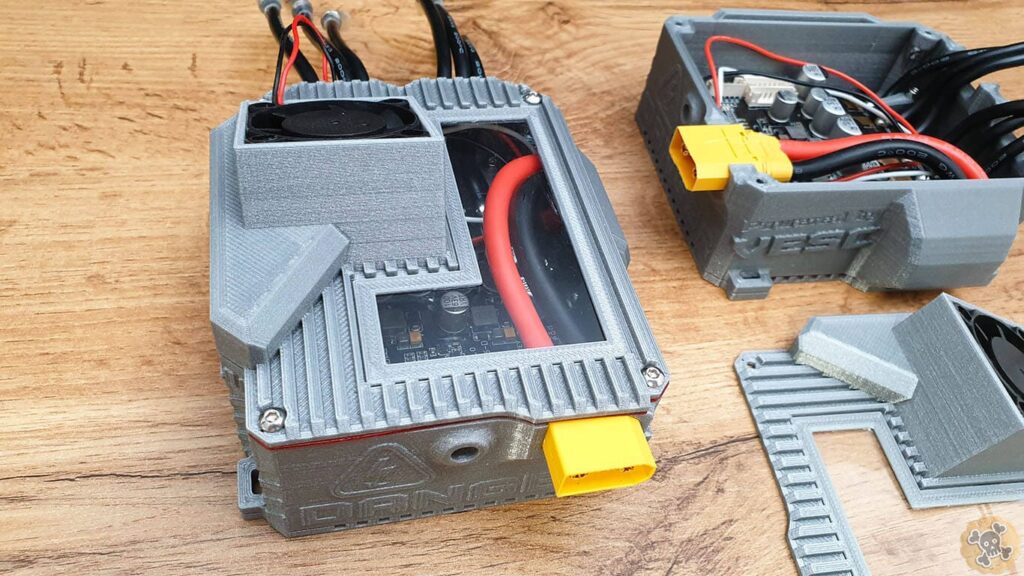

And there we got a window, on vesc are 4 leds so inside cause will be quite bright 😉

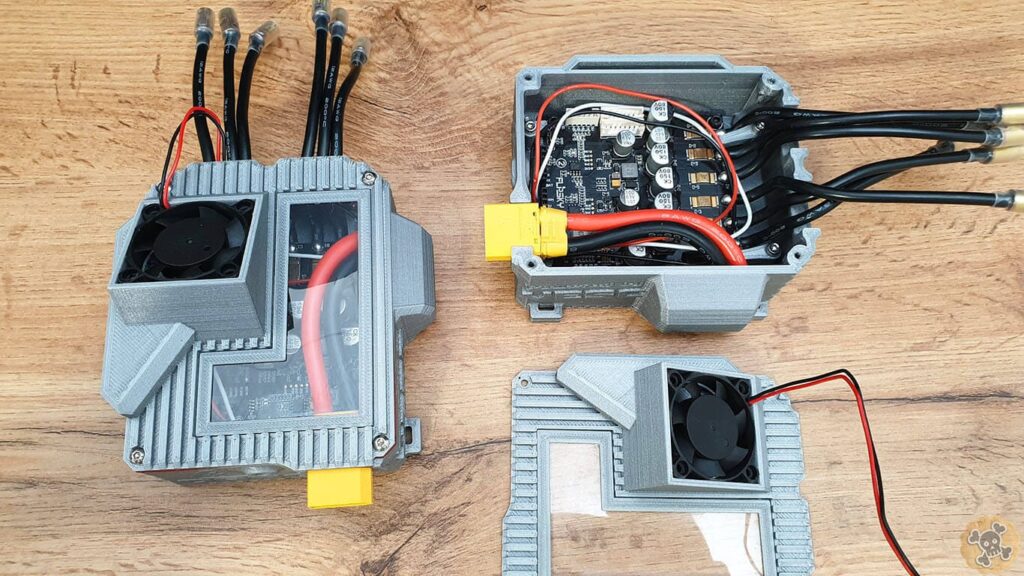

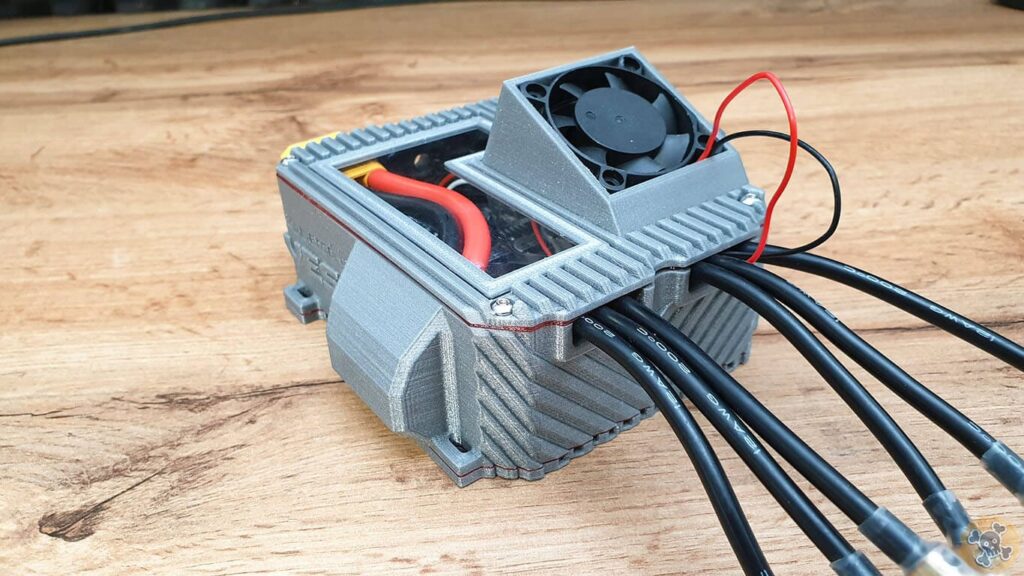

When you finish wiring, connect 5V fan to one of the UARTs on Vesc ( add some capacitor between 5v + & – as a low pass filter )

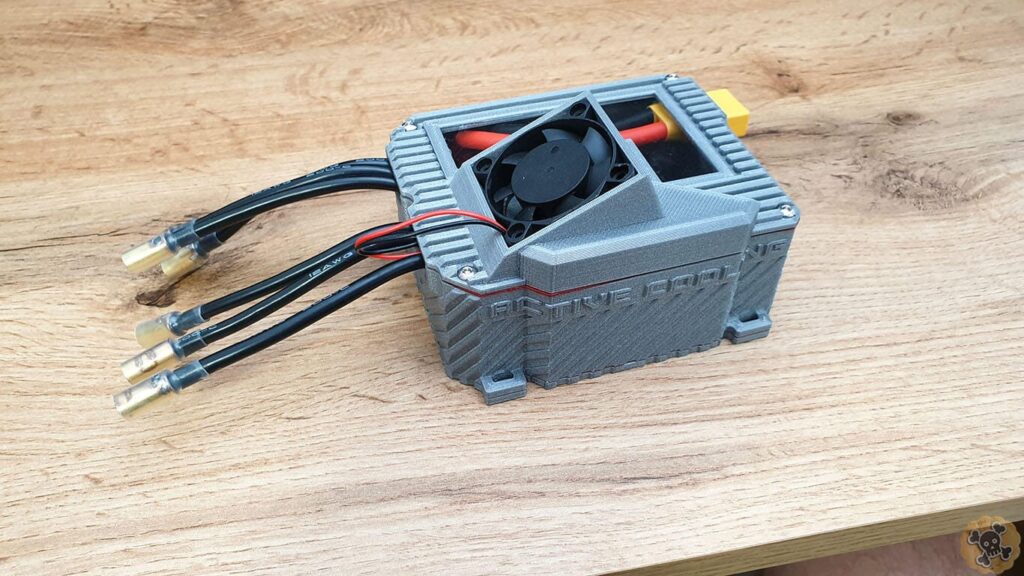

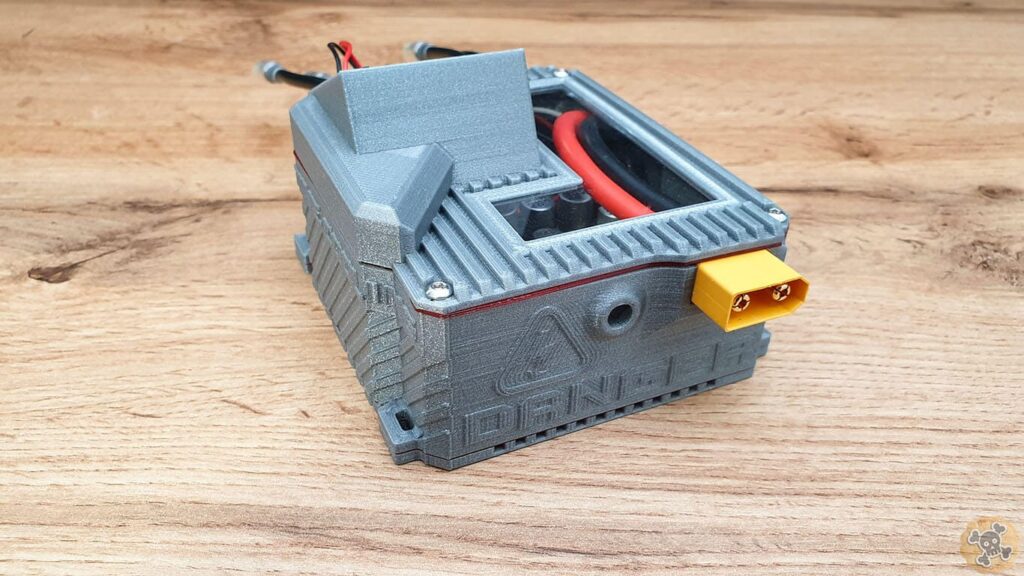

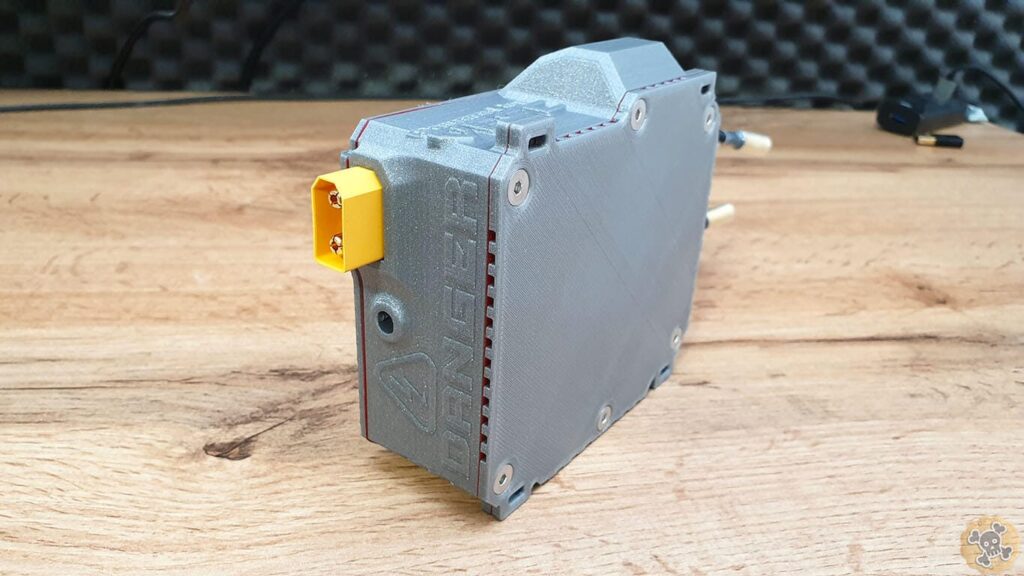

You have to admit it Looks GOOD 🙂 , my Patrons www.patreon.com/pirateonpatreon will have couple versions of top lid and newest versions 😉
