Boyueda Scooter Adapter V2 for MTB Oil shock Designed by Pirate

Pirate Pirate October 6, 2020 Designed by Pirate
Deal Score+3
12 1202
Deal Score+3

Thanks to this simple adapter you will be able to install Oil MTB shock on the back, scooter will be way more stabe and you will be able to go faster than before 🙂 . What you need is Oil Shock like 125mm 2500lbs and my adapter. Here you can choose between these 2

Free V1 4pcs version

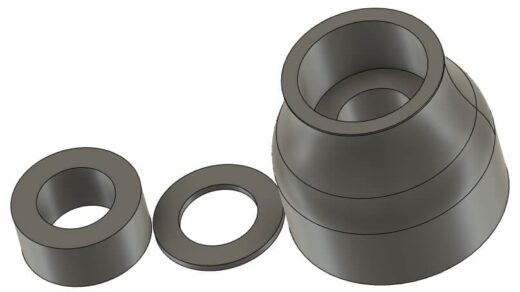

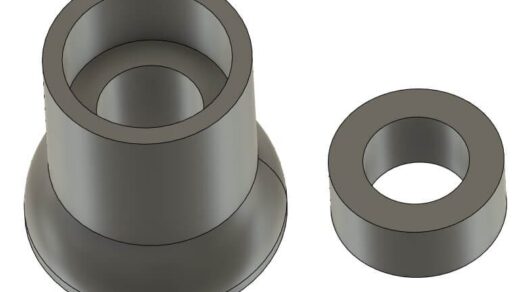

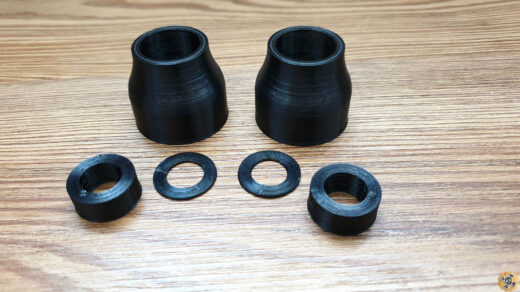

V2 6pcs version where I added extra bushing to decrease friction and increase size to make it more durable.

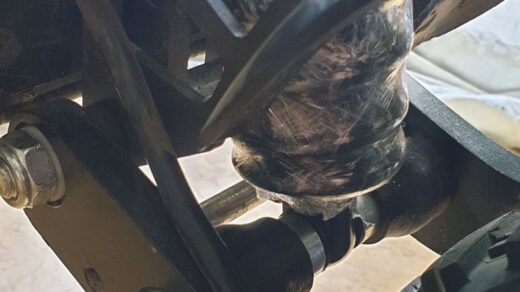

It’s super easy to install.

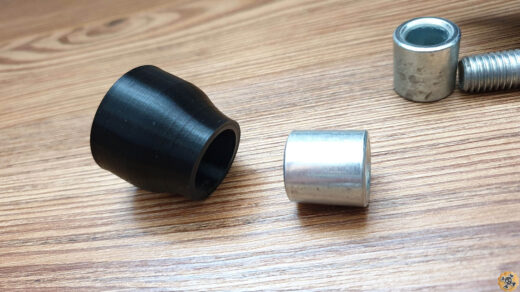

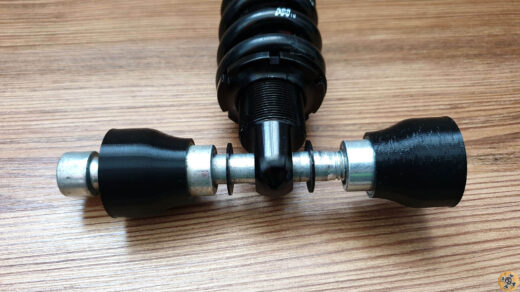

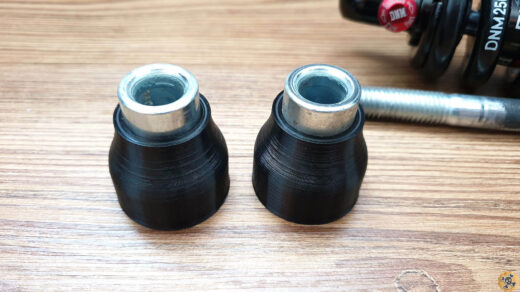

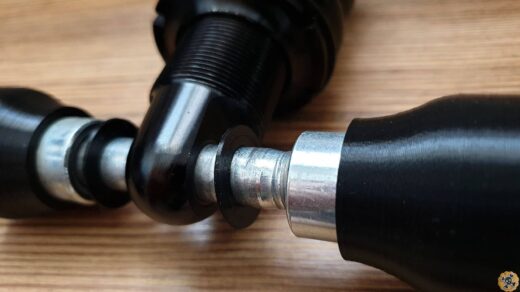

Just remove old rear shock. On silver bottom spacer place big adapter

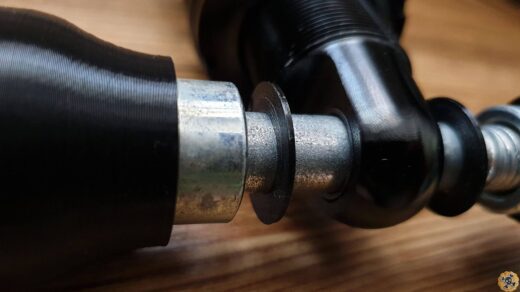

If you have V2 then between fork and silver washer add tiny washers and Do NOT FORGET to use grease on all moving parts including bolts.

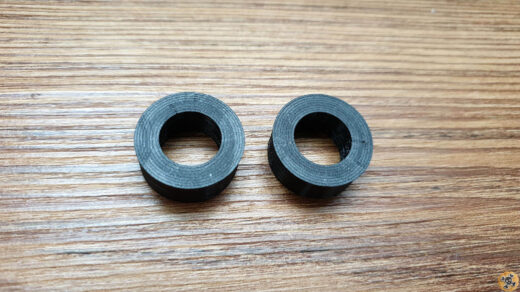

on the top ( other side of the fork ) use 2 medium spacers

, tight all screws and good to go 🙂

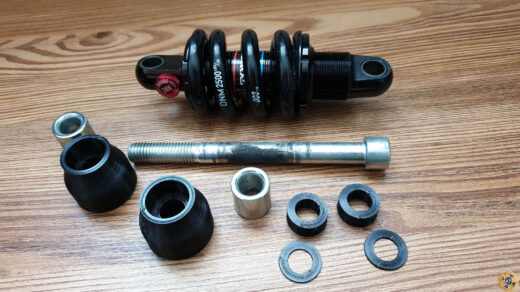

Part List and Links

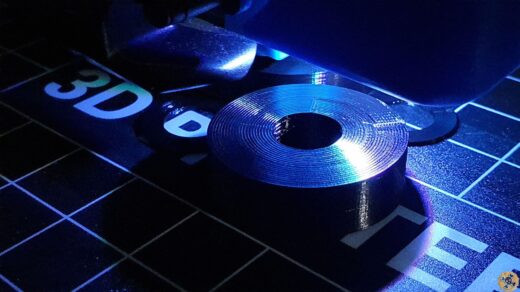

Free 3D Version > www.thingiverse.com/piratein3d/designs

DNM Shock 125mm 2500lbs www.aliexpress.com/item/32951315193.html

?? Do you ? Pirate ⁉ and want to Support ‼ ?? Banggod bit.ly/PirateBG ( buy what U like from link ) Ali s.click.aliexpress.com/e/_dUILQgR ( buy what U like from link ) ? www.patreon.com/pirateonpatreon Or just leave some positive comment and make my Day ??

Related Articles
12 Comments
Show all Most Helpful Highest Rating Lowest Rating Add your review
  1. Reply
    Francesco Boretti October 3, 2020 at 8:39 pm

    PETG or PLA or TPU filament ? infill ?

  2. Reply
    DavidMow October 26, 2020 at 7:32 am

    perdere 10 kg in una settimana

  3. Reply
    Mark Cock November 26, 2020 at 1:04 am

    Great YouTube Video, I am having trouble getting hold of a DNM 22AR 125mm Rear Shock as per your Video, firstly, are you able to supply one for me? Can I use a 150mm size Shock? I live in the UK

    • Reply
      Pirate November 27, 2020 at 8:40 am

      150mm but scoot will have bigger clearance from the ground so can behave unstable. 125mm is best choice but hard to find with spring 125mm

      • Reply
        Mark Cock December 14, 2020 at 2:15 pm

        I am trying to access the free 3D version of the adapter, are you able to provide link or perhaps email me the file as it does not appear on the thingyverse site

  4. Reply
    Christian January 19, 2021 at 5:44 pm

    Hi, how can i get V2 Adapter? Do you sell the parts or the Stl file?

  5. Reply
    Jakub Hofer February 18, 2021 at 2:31 pm

    2500 lbs for 100kg rider? Can be too hard?

  6. Reply
    Manuel Costa April 8, 2021 at 3:07 pm

    Hello!
    It seems to be impossible to find a 2000 or 2500lbs shock on the market. Do you know were can we find one on sale? Thanks for posting this info publicly!

  7. Reply
    pavel June 28, 2021 at 3:30 pm

    wont fit for 2021 boyeda, top ok , btm needs get 1 mm out for metal sleeves go deeper. cmon man share dwg
